Processor
Processor Family
Intel® U Series Core Ultra 5 / 7 Processor (Series 2)
AI (Artificial Intelligence)
NPU**
- Integrated Intel® AI Boost, up to 47 TOPS
- Integrated Intel® AI Boost, up to 40 TOPS
Operating System
Operating System**
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Monitor Support
Monitor Support
Supports up to 2 independent displays via native display and 1 external monitor; supports external monitor via HDMI®
Chipset
Chipset
Intel® SoC (System on Chip) platform
Memory
Max Memory[1]
16GB soldered LPDDR5x-8533 MoP, not upgradable
Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Memory Type
LPDDR5x-8533, MoP (Memory on Package) memory
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.Classification Default |
Storage
Max Storage Support[1]
One drive, up to 1TB M.2 SSD
Storage Type
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 |
Notes:
| [1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Card Reader
No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Realtek® ALC233 codec
Speakers
Stereo speakers, 3W x2, Audio by HARMAN
Microphone
Dual-microphone array
Power Supply
Power Supply**
| 90W | Adapter | 89% | Autosensing |
| 135W | Adapter | 90% | Autosensing |
Display
Display**[1]
| 27" | FHD (1920x1080) | Multi-touch | IPS | 300nits | Anti-glare | 16:9 | 1300:1 | 99% sRGB | 100Hz | 89° / 89° / 89° / 89° | Borderless design, low blue light, flicker free |
| 27" | FHD (1920x1080) | Non-touch | IPS | 300nits | Anti-glare | 16:9 | 1300:1 | 99% sRGB | 100Hz | 89° / 89° / 89° / 89° | Borderless design, low blue light, flicker free |
Touchscreen
- 10-point multi-touch
- Non-touch
Notes:
| [1] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.Classification Default |
Input Device
Keyboard**
- Lenovo® Calliope Keyboard (USB connector), cloud grey
- Lenovo® Calliope Keyboard (USB connector), luna grey
- Wireless EOS Keyboard, Cloud Grey
- Wireless EOS Keyboard, Luna Grey
- No keyboard
Mouse**
- Lenovo® Calliope Mouse (USB connector), Cloud Grey
- Lenovo® Calliope Mouse (USB connector), Luna Grey
- Wireless EOS Mouse, cloud grey
- Wireless EOS Mouse, luna grey
Mechanical
Form Factor
AIO (27 inches)
Dimensions (WxDxH)[1]
611.72 x 192.1 x 471.66 mm (24.08 x 7.56 x 18.56 inches)
Packaging Dimensions (WxDxH)
766 x 223 x 570 mm (30.16 x 8.77 x 22.44 inches)
Weight[2]
Around 7.1 kg (15.65 lbs)
Packaging Weight
Around 10.9 kg (24.03 lbs)
Expansion Slots
Two M.2 slots (one for WLAN, one for SSD)
Stand
Monitor stand, Supports -5° to +15° tilt
Others
- (Optional) Wireless charger 15W
- None
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
WLAN + Bluetooth®[1]
Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
Onboard Ethernet
Gigabit Ethernet, 1x RJ-45
Notes:
| [1] Wi-Fi® operation (including Wi-Fi® 6, Wi-Fi® 6E, Wi-Fi® 7, etc.) is subject to the regulatory requirements of each country.
Bluetooth® may operate at a lower version than hardware design depending on the factors such as operating system, driver, etc.Feature Default |

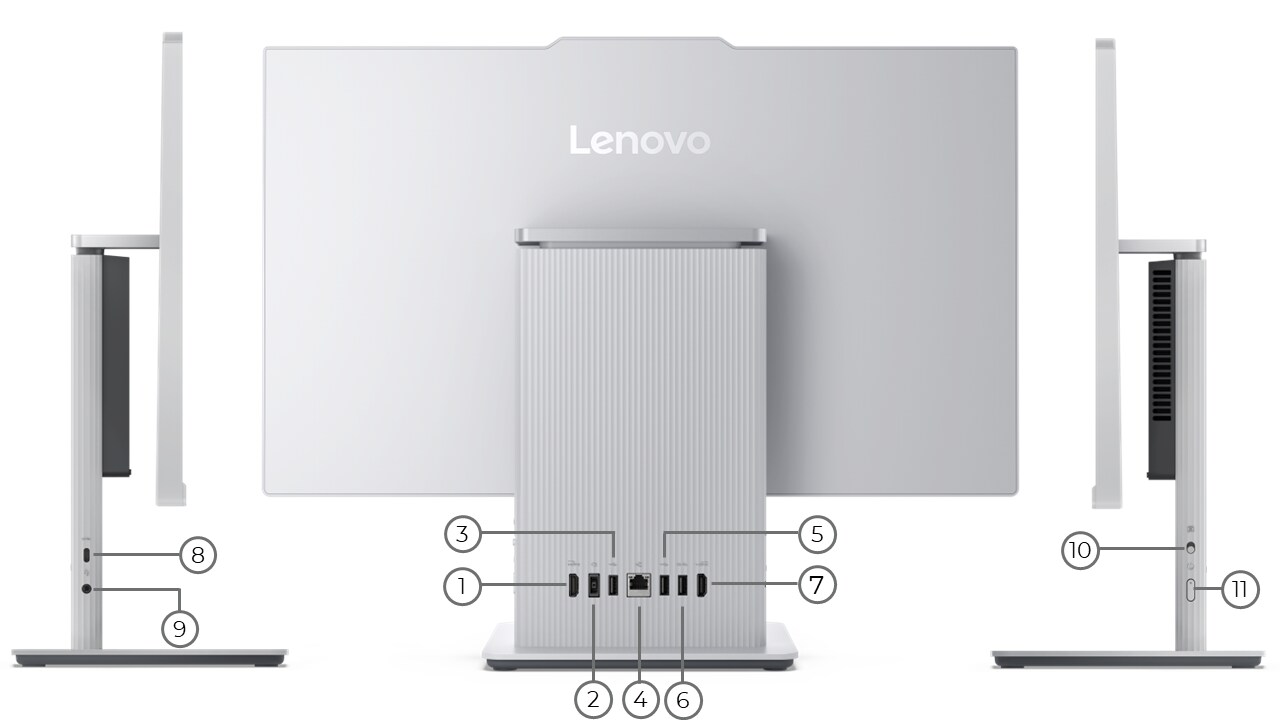

Ports[1]
Rear Ports
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 1x HDMI® 2.1 TMDS
- 1x HDMI®-in
- 1x Ethernet (RJ-45)
- 1x power connector
Left Ports
- 1x Camera switch
- 1x Power button
Right Ports
- 1x headphone / microphone combo jack (3.5mm)
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2)
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4® 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.
Thunderbolt™ 5: 80 Gbit/s (bidirectional), up to 120 Gbit/s in bandwidth boost mode for video-intensive applications.StructureLevel2 |
Security
Security Chip
Firmware TPM 2.0 integrated in SoC
BIOS Security
- Administrator password
- Hard disk password
