Processor
Processor Family
AMD Ryzen™ 5 / 7 200 Series, or AMD Ryzen™ AI 5 / 7 300 Series Processor
Processor**
| AMD Ryzen™ 5 220 | 6 | 12 | 3.2GHz | 4.9GHz | 6MB L2 / 16MB L3 | AMD Radeon™ 740M | - |
| AMD Ryzen™ 7 250 | 8 | 16 | 3.3GHz | 5.1GHz | 8MB L2 / 16MB L3 | AMD Radeon™ 780M | AMD Ryzen™ AI |
| AMD Ryzen™ AI 5 340 | 6 | 12 | 2GHz | 4.8GHz | 6MB L2 / 16MB L3 | AMD Radeon™ 840M | AMD Ryzen™ AI |
| AMD Ryzen™ AI 7 350 | 8 | 16 | 2GHz | 5GHz | 8MB L2 / 16MB L3 | AMD Radeon™ 860M | AMD Ryzen™ AI |
AI (Artificial Intelligence)
AI PC Category**
- Non-AI PC
- Copilot+ PC (models with AMD Ryzen™ AI 5 / 7 300 Series processor)
- AI PC (models with AMD Ryzen™ 7 250 processor)
NPU**
- Integrated AMD Ryzen™ AI, up to 50 TOPS
- Integrated AMD Ryzen™ AI, up to 16 TOPS
- None
Operating System
Operating System**
- Windows® 11 Home
- Windows® 11 Home Single Language
- No preload operating system
Graphics
Graphics**
| AMD Radeon™ 740M | Integrated | Shared | 4096x2160@60Hz(HDMI®) | 1x HDMI® 2.1 TMDS | DirectX® 12 |
| AMD Radeon™ 780M | Integrated | Shared | 4096x2160@60Hz(HDMI®) | 1x HDMI® 2.1 TMDS | DirectX® 12 |
| AMD Radeon™ 860M | Integrated | Shared | 4096x2160@60Hz(HDMI®) | 1x HDMI® 2.1 TMDS | DirectX® 12 |
| AMD Radeon™ 840M | Integrated | Shared | 4096x2160@60Hz(HDMI®) | 1x HDMI® 2.1 TMDS | DirectX® 12 |
Monitor Support
Monitor Support
Supports up to 2 independent displays via native display and 1 external monitor; supports external monitor via HDMI®
Chipset
Chipset
AMD SoC (System on Chip) platform
Memory
Max Memory[1]
Up to 32GB DDR5-5600
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Notes:
| [1] The max memory is based on the test results with current Lenovo® memory offerings.Classification Default |
Storage
Storage Support[1]
One drive, up to 1TB M.2 SSD
Storage Type
| M.2 2280 SSD | PCIe® NVMe®, PCIe® 4.0 x4 |
Notes:
| [1] The max capacity of each disk type is based on the test results with current Lenovo® storage offerings.Classification Default |
Removable Storage
Card Reader
No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Realtek® ALC3341 codec
Speakers
Stereo speakers, 3W x2, Audio by HARMAN
Microphone
Dual-microphone array
Camera**
- 5.0-megapixel
- 5.0-megapixel IR camera
Power Supply
Power Supply**
| 90W | Adapter | 89% | 100V - 240V |
| 135W | Adapter | 90% | 100V - 240V |
Display
Display**[1]
| 27" | FHD (1920x1080) | None | IPS | 300nits | Anti-glare | 16:9 | 1300:1 | 99% sRGB | 100Hz | 89° / 89° / 89° / 89° | Borderless design, low blue light, flicker free |
| 27" | FHD (1920x1080) | Multi-touch | IPS | 300nits | Anti-glare | 16:9 | 1300:1 | 99% sRGB | 100Hz | 89° / 89° / 89° / 89° | Borderless design, low blue light, flicker free |
Touchscreen
- (Optional) 10-point multi-touch
- Non-touch
Notes:
| [1] IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.Classification Default |
Input Device
Keyboard**
- Lenovo® Calliope Keyboard (USB connector), cloud grey
- Lenovo® Calliope Keyboard (USB connector), luna grey
- Wireless EOS Keyboard, Cloud Grey
- Wireless EOS Keyboard, Luna Grey
Mouse**
- Wireless EOS Mouse, luna grey
- Wireless EOS Mouse, cloud grey
- Lenovo® Calliope Mouse (USB connector), Cloud Grey
Mechanical
Form Factor
AIO (27 inches)
Dimensions (WxDxH)[1]
611.72 x 192.1 x 471.66 mm (24.08 x 7.56 x 18.56 inches)
Packaging Dimensions (WxDxH)
766 x 223 x 570 mm (30.16 x 8.77 x 22.44 inches)
Weight[2]
Around 7.1 kg (15.65 lbs)
Packaging Weight
Around 10.9 kg (24.03 lbs)
Expansion Slots
Three M.2 slots (one for WLAN, two for SSD)
Stand
Monitor stand, Supports -5° to +15° tilt
Others
(Optional) Wireless charger 15W
Notes:
| [1] The system dimensions may vary depending on configurations.Feature Default |
| [2] The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.Feature Default |
Network
WLAN + Bluetooth®
Wi-Fi® 6, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3, M.2 card
Onboard Ethernet
Gigabit Ethernet, 1x RJ-45

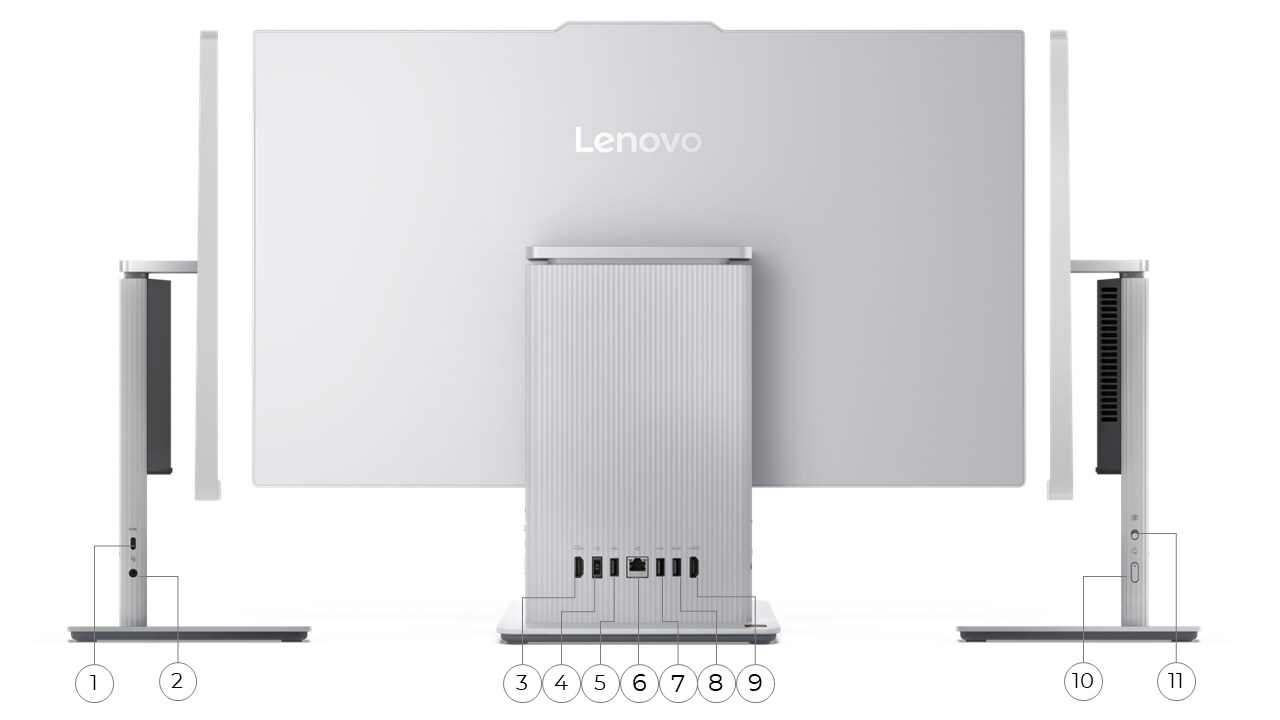

Ports[1]
Rear Ports
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 1x HDMI®-in 1.4
- 1x HDMI®-out 2.1 TMDS
- 1x Ethernet (RJ-45)
- 1x power connector
Left Ports
- 1x headphone / microphone combo jack (3.5mm)
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2)
Notes:
| [1] The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
USB4® 40Gbps (USB 40Gbps): 40 Gbit/s;
Thunderbolt™ 3/4: 40 Gbit/s.StructureLevel2 |
Security
Security Chip
Firmware TPM 2.0 integrated in SoC
BIOS Security
- Administrator password
- Hard disk password
- Power-on password
