ThinkPad X1 Carbon Gen 11

	Up to 13th Gen Intel® Core™ i7-1370P
	Up to Windows® 11 Pro
	Intel® Iris® Xe Graphics eligible (integrated)
	Up to 64GB LPDDR5/x-6000, soldered
	Up to 1x 2TB M.2 PCIe® NVMe® SSD
	Up to 14" (2880x1800) OLED, 400nits, 100% DCI-P3, DisplayHDR™ True Black 500, Eyesafe®

Note: some configurations are only available on selected models and may not be available in all regions

ThinkPad X1 Carbon Gen 11
Specs Purchase Help

Overview
Models
Specifications
Documentation
User Guide
Accessories
Machine Type: 21HM
Machine Type: 21HN
Services
Machine Type: 21HM
Machine Type: 21HN

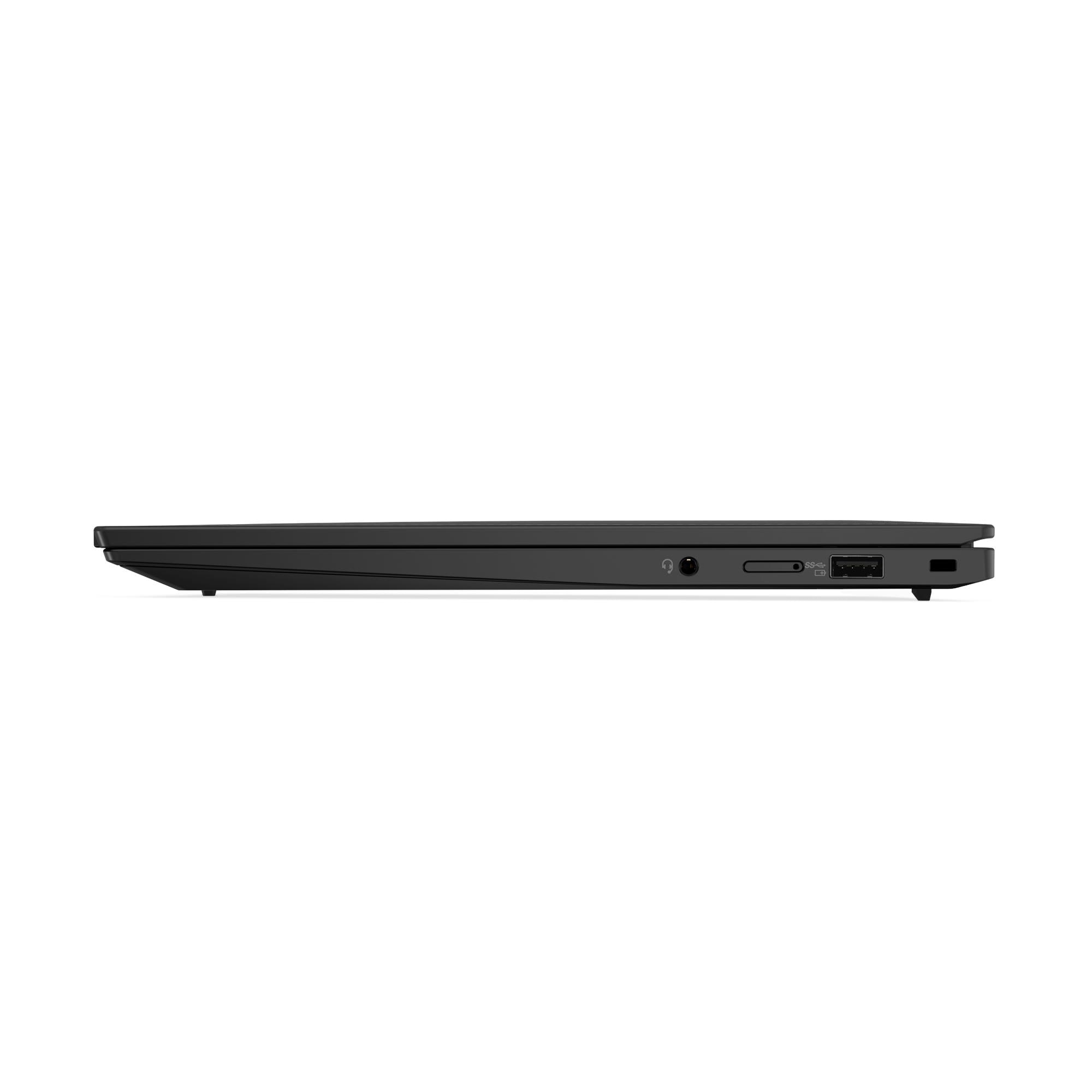

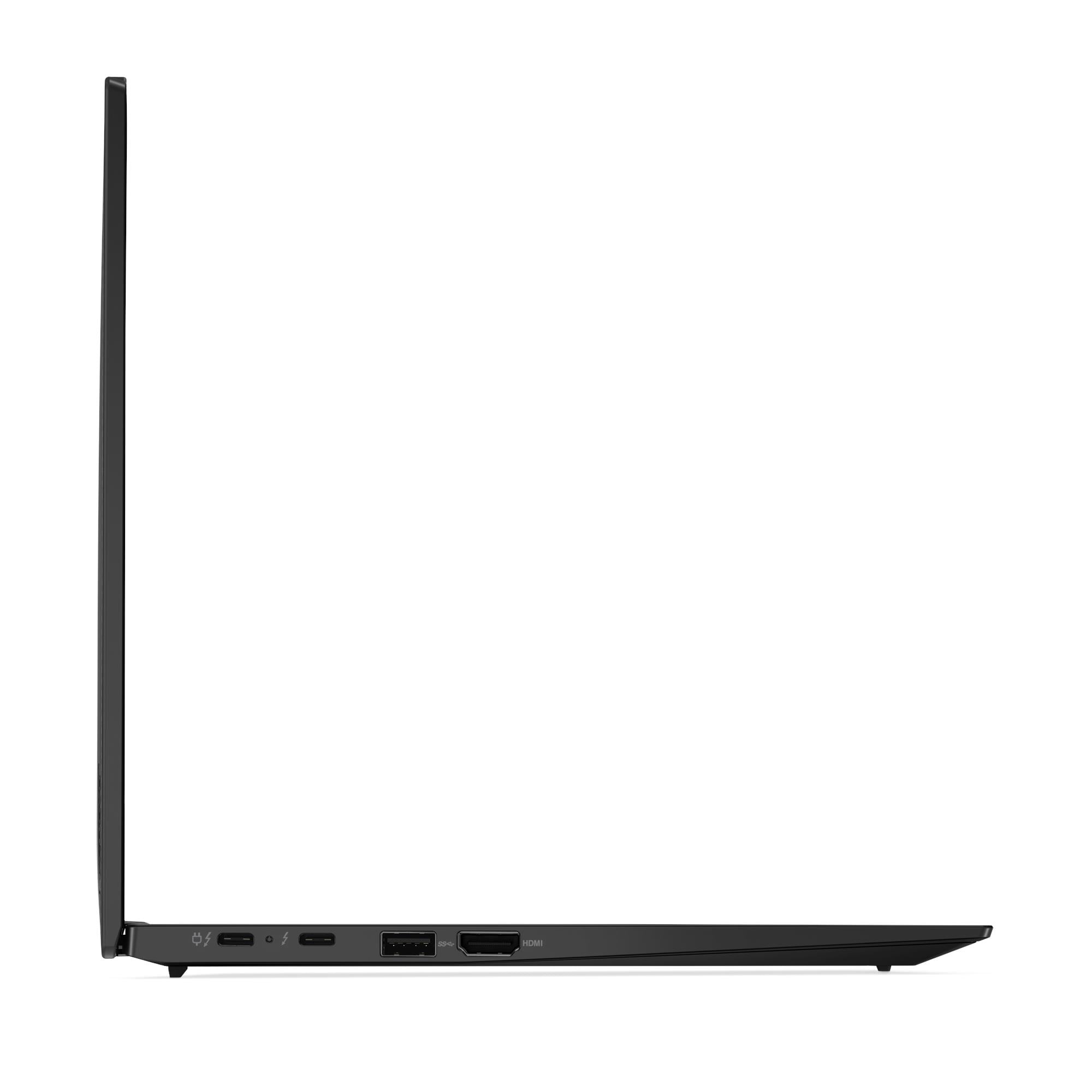

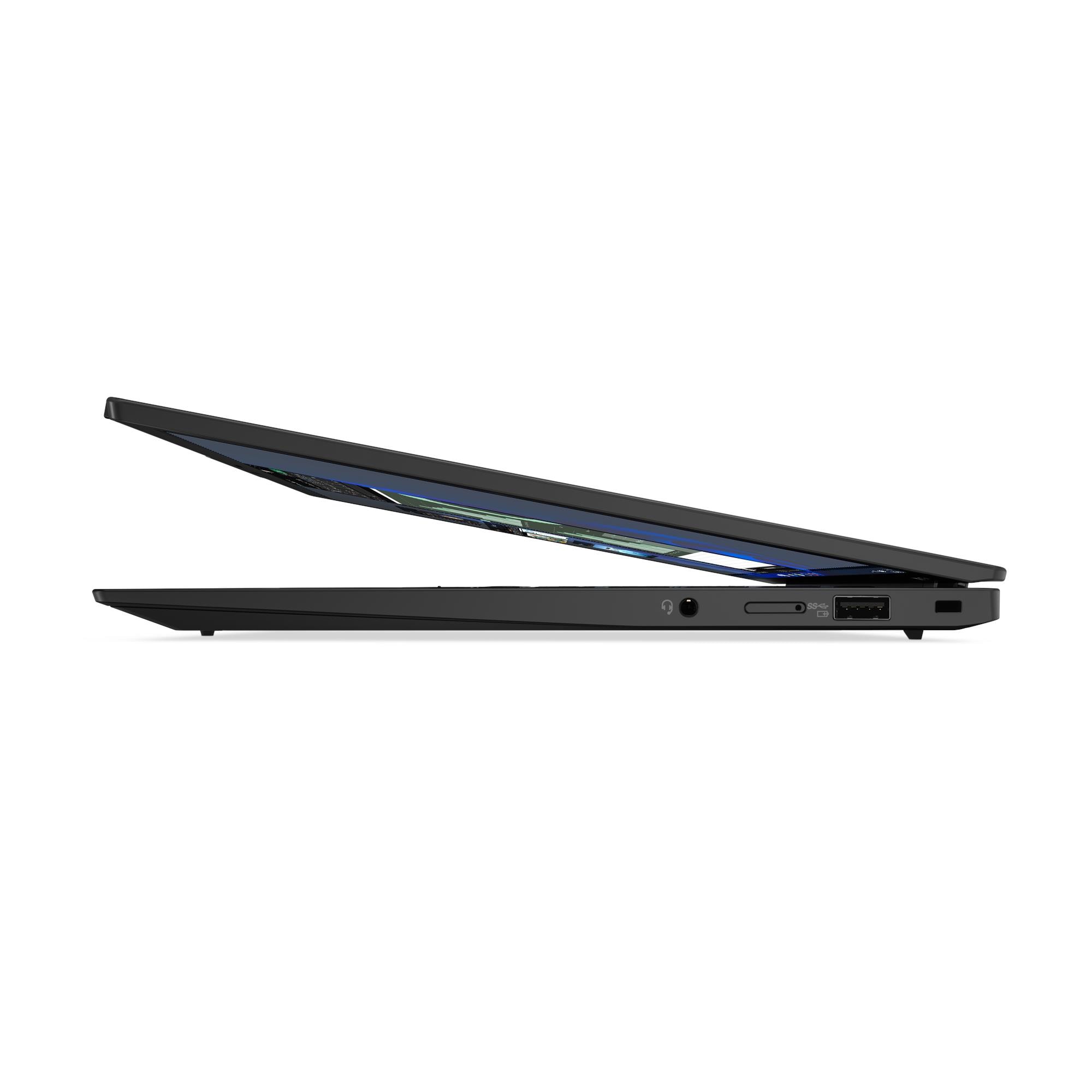

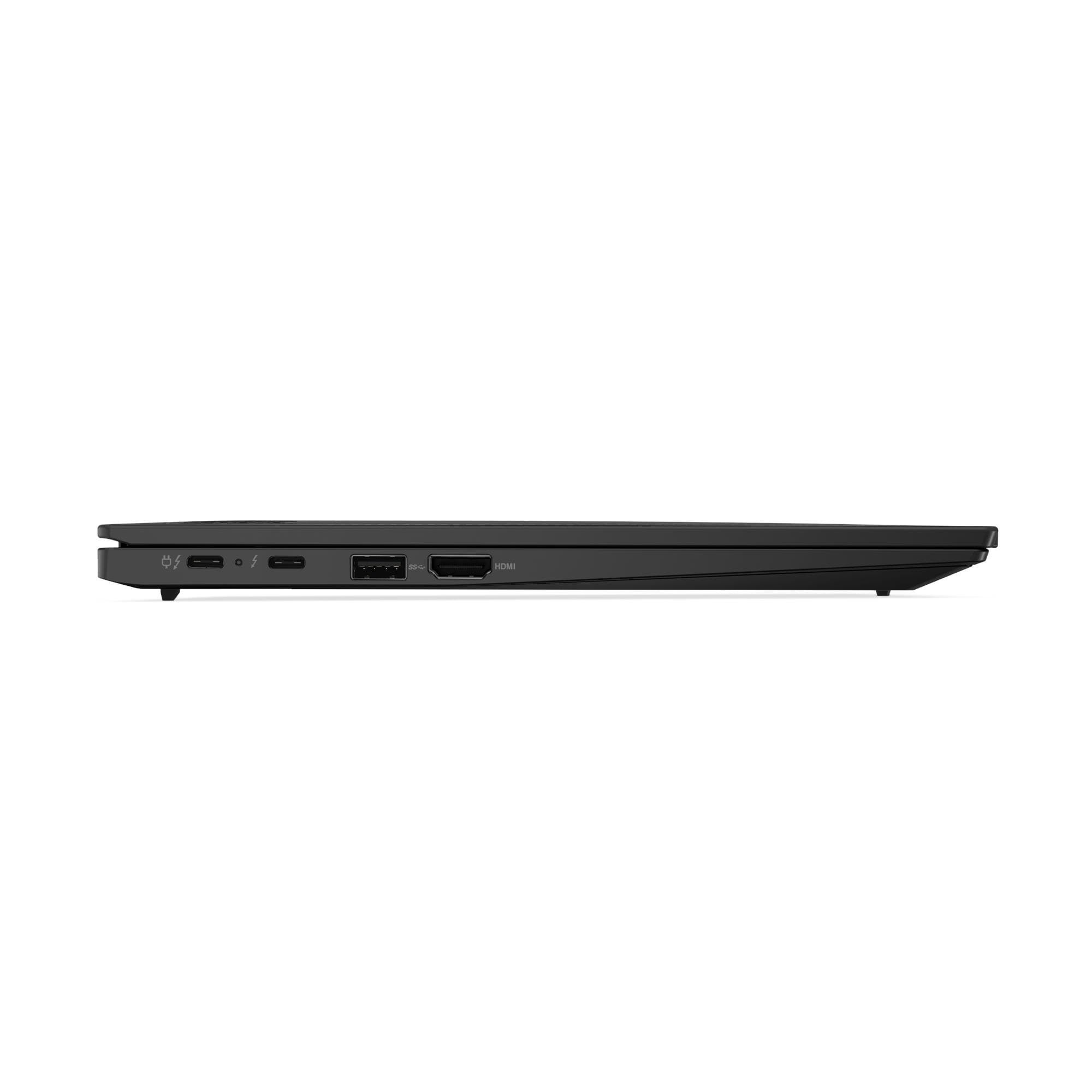

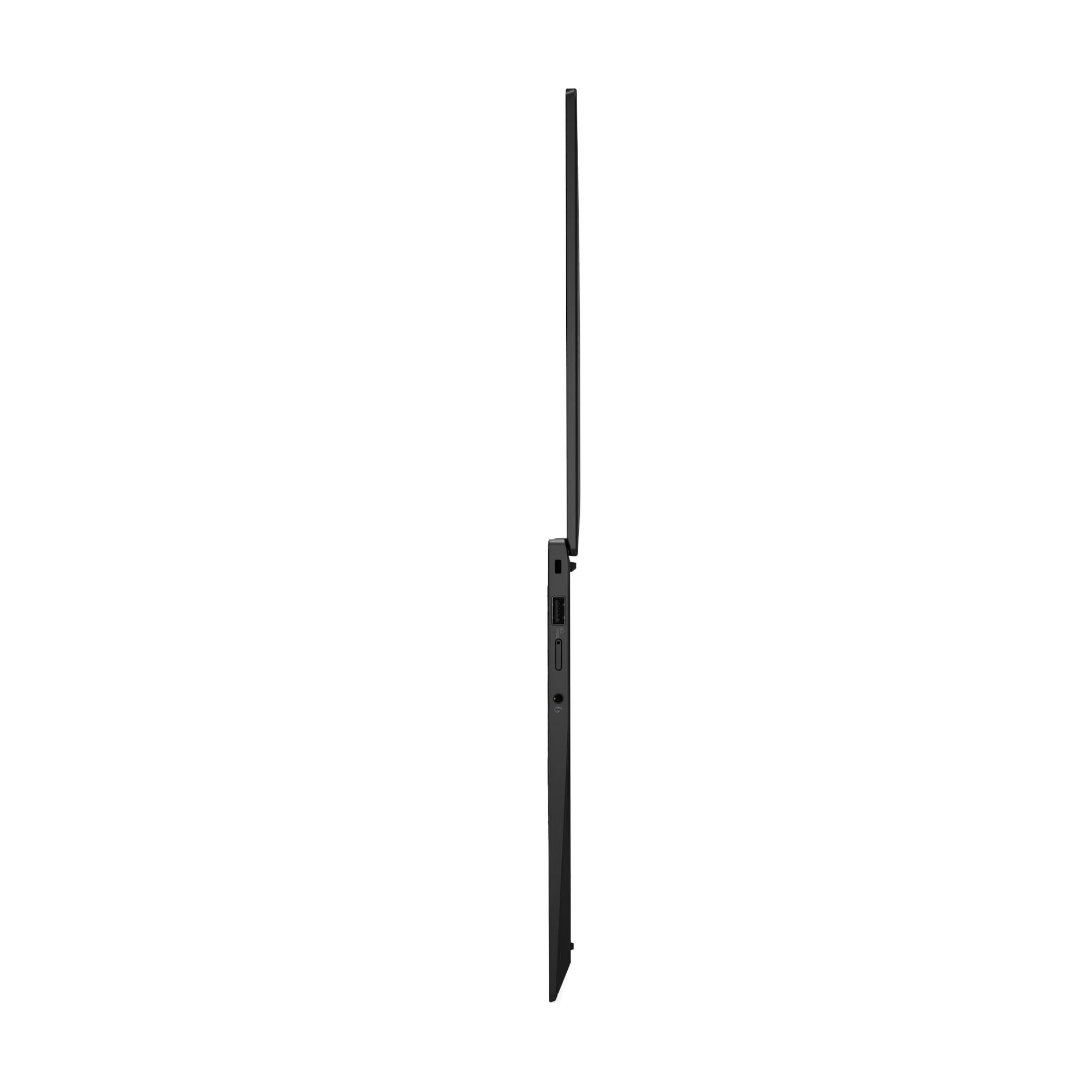

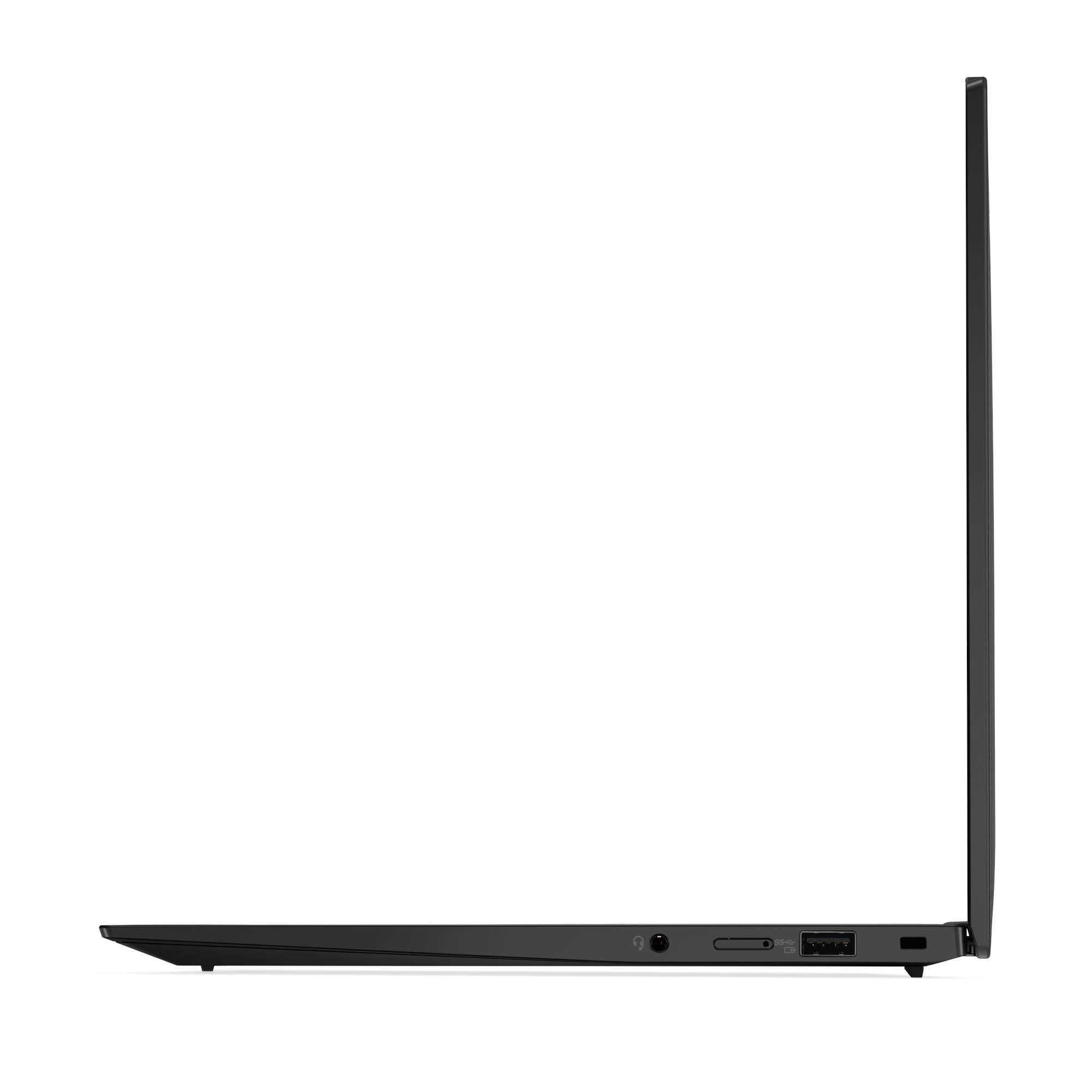

1. Thunderbolt™ 4	5. Headphone / microphone combo jack (3.5mm)
2. Thunderbolt™ 4	6. Nano-SIM card slot*
3. USB 3.2 Gen 1	7. USB 3.2 Gen 1 (Always On)
4. HDMI®	8. Kensington® Nano Security Slot™

Notes:

Items with * are only available on selected models

Country / Region Select

Compare (0)

Highlight the differences

Excel

Total loaded items: 5237

Model	21HM00C4FRCompare	21HM00C4IXCompare	21HM00C4MBCompare	21HM00C4MHCompare	21HM00C4MXCompare	21HM00C4MZCompare	21HM00C4SPCompare	21HM00C4UKCompare	21HM00C6IXCompare	21HM00C6MXCompare	21HM00CAMZCompare	21HM00CCMHCompare	21HM00CDFRCompare	21HM00CDIXCompare	21HM00CDMBCompare	21HM00CDMHCompare	21HM00CDMXCompare	21HM00CDPGCompare	21HM00CDSPCompare	21HM00CDUKCompare	21HM00CEFRCompare	21HM00CEIXCompare	21HM00CEMBCompare	21HM00CEMXCompare	21HM00CEPGCompare	21HM00CESPCompare	21HM00CEUKCompare	21HM00CFFRCompare	21HM00CFIXCompare	21HM00CFMBCompare
PERFORMANCE
Processor	Intel Core i5-1345U, 10C (2P + 8E) / 12T, P-core 1.6 / 4.7GHz, E-core 1.2 / 3.5GHz, 12MB	Intel Core i5-1345U, 10C (2P + 8E) / 12T, P-core 1.6 / 4.7GHz, E-core 1.2 / 3.5GHz, 12MB	Intel Core i5-1345U, 10C (2P + 8E) / 12T, P-core 1.6 / 4.7GHz, E-core 1.2 / 3.5GHz, 12MB	Intel Core i5-1345U, 10C (2P + 8E) / 12T, P-core 1.6 / 4.7GHz, E-core 1.2 / 3.5GHz, 12MB	Intel Core i5-1345U, 10C (2P + 8E) / 12T, P-core 1.6 / 4.7GHz, E-core 1.2 / 3.5GHz, 12MB	Intel Core i5-1345U, 10C (2P + 8E) / 12T, P-core 1.6 / 4.7GHz, E-core 1.2 / 3.5GHz, 12MB	Intel Core i5-1345U, 10C (2P + 8E) / 12T, P-core 1.6 / 4.7GHz, E-core 1.2 / 3.5GHz, 12MB	Intel Core i5-1345U, 10C (2P + 8E) / 12T, P-core 1.6 / 4.7GHz, E-core 1.2 / 3.5GHz, 12MB	Intel Core i5-1345U, 10C (2P + 8E) / 12T, P-core 1.6 / 4.7GHz, E-core 1.2 / 3.5GHz, 12MB	Intel Core i5-1345U, 10C (2P + 8E) / 12T, P-core 1.6 / 4.7GHz, E-core 1.2 / 3.5GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB	Intel Core i7-1365U, 10C (2P + 8E) / 12T, P-core 1.8 / 5.2GHz, E-core 1.3 / 3.9GHz, 12MB
Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics	Integrated Intel Iris Xe Graphics
Chipset	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform	Intel SoC Platform
Memory	16GB Soldered LPDDR5-6400	16GB Soldered LPDDR5-6400	16GB Soldered LPDDR5-6400	16GB Soldered LPDDR5-6400	16GB Soldered LPDDR5-6400	16GB Soldered LPDDR5-6400	16GB Soldered LPDDR5-6400	16GB Soldered LPDDR5-6400	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000	32GB Soldered LPDDR5-6000
Memory Slots	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel	Memory soldered to systemboard, no slots, 8-channel
Max Memory	16GB soldered memory, not upgradable	16GB soldered memory, not upgradable	16GB soldered memory, not upgradable	16GB soldered memory, not upgradable	16GB soldered memory, not upgradable	16GB soldered memory, not upgradable	16GB soldered memory, not upgradable	16GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable	32GB soldered memory, not upgradable
Storage	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	512GB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0	1TB SSD M.2 2280 PCIe 4.0x4 Performance NVMe Opal 2.0
Storage Support	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD	One drive, up to 2TB M.2 2280 SSD
Storage Slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot	One M.2 2280 PCIe 4.0 x4 slot
Card Reader	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None
Optical	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None
Audio Chip	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec	High Definition (HD) Audio, Realtek ALC3306 codec
Speakers	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos	Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos
Camera	FHD 1080p with Privacy Shutter	FHD 1080p with Privacy Shutter	FHD 1080p with Privacy Shutter	FHD 1080p with Privacy Shutter	FHD 1080p with Privacy Shutter	FHD 1080p with Privacy Shutter	FHD 1080p with Privacy Shutter	FHD 1080p with Privacy Shutter	FHD 1080p + IR Hybrid with Privacy Shutter	FHD 1080p + IR Hybrid with Privacy Shutter	FHD 1080p + IR Hybrid with Privacy Shutter	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision	FHD 1080p + IR Discrete with Privacy Shutter, MIPI, Computer Vision
Microphone	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array	4x, Array
Battery	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh	57Wh
Power Adapter	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)	65W USB-C Slim (3-pin)
DESIGN
Display	14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, Low Power	14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, Low Power	14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, Low Power	14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, Low Power	14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, Low Power	14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, Low Power	14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, Low Power	14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, Low Power	14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, Low Power, Touch	14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, Low Power, Touch	14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, Low Power, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch	14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, ThinkPad Privacy Guard, Touch
Touchscreen	None	None	None	None	None	None	None	None	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch	On-cell, 10-point Multi-touch
Keyboard	Backlit, French	Backlit, Italian	Backlit, Belgian	Backlit, English (EU)	Backlit, Nordic (DK/FI/NO/SV)	Backlit, Swiss	Backlit, Spanish	Backlit, English (UK)	Backlit, Italian	Backlit, Nordic (DK/FI/NO/SV)	Backlit, Swiss	Backlit, English (EU)	Backlit, French	Backlit, Italian	Backlit, Belgian	Backlit, English (EU)	Backlit, Nordic (DK/FI/NO/SV)	Backlit, Portuguese	Backlit, Spanish	Backlit, English (UK)	Backlit, French	Backlit, Italian	Backlit, Belgian	Backlit, Nordic (DK/FI/NO/SV)	Backlit, Portuguese	Backlit, Spanish	Backlit, English (UK)	Backlit, French	Backlit, Italian	Backlit, Belgian
Case Color	Deep Black, Paint	Deep Black, Paint	Deep Black, Paint	Deep Black, Paint	Deep Black, Paint	Deep Black, Paint	Deep Black, Paint	Deep Black, Paint	Deep Black, Paint	Deep Black, Paint	Deep Black, Paint	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave	Deep Black, Weave
Case Material	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)	Carbon Fiber (Top), Aluminium (Bottom)
Pen	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported
Dimensions (WxDxH)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)
Weight	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)	Starting at 1.12 kg (2.48 lbs)
SOFTWARE
Operating System	Windows 11 Pro, French	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, Nordic (DK/FI/SV/NO/EN)	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, Spanish	Windows 11 Pro, English	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, Nordic (DK/FI/SV/NO/EN)	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, French	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, Nordic (DK/FI/SV/NO/EN)	Windows 11 Pro, Portuguese / English	Windows 11 Pro, Spanish	Windows 11 Pro, English	Windows 11 Pro, French	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, Nordic (DK/FI/SV/NO/EN)	Windows 11 Pro, Portuguese / English	Windows 11 Pro, Spanish	Windows 11 Pro, English	Windows 11 Pro, French	Windows 11 Pro, WE (EN/FR/DE/NL/IT)	Windows 11 Pro, WE (EN/FR/DE/NL/IT)
Bundled Software	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite	Intel Connectivity Performance Suite
CONNECTIVITY
WLAN + Bluetooth	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3	Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3
WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	WWAN Upgradable to 4G or 5G	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	WWAN Upgradable to 4G or 5G	WWAN Upgradable to 4G or 5G	WWAN Upgradable to 4G or 5G	WWAN Upgradable to 4G or 5G	WWAN Upgradable to 4G or 5G	WWAN Upgradable to 4G or 5G	WWAN Upgradable to 4G or 5G	Non-WWAN	Non-WWAN	Non-WWAN
SIM Card	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None
Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet	No Onboard Ethernet
NFC	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None
Standard Ports	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)	• 1x USB 3.2 Gen 1 • 1x USB 3.2 Gen 1 (Always On) • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a) • 1x HDMI 2.1, up to 4K/60Hz • 1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured)	None	None	None	None	None	None	None	None	None	None	None	1x Nano-SIM Card Slot	None	None	None	None	None	None	None	None	1x Nano-SIM Card Slot	1x Nano-SIM Card Slot	1x Nano-SIM Card Slot	1x Nano-SIM Card Slot	1x Nano-SIM Card Slot	1x Nano-SIM Card Slot	1x Nano-SIM Card Slot	None	None	None
Docking	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11	Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 11
SECURITY & PRIVACY
Smart Card Reader	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None
Security Chip	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled	Discrete TPM 2.0 Enabled
Fingerprint Reader	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button	Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm	Kensington Nano Security Slot, 2.5 x 6 mm
Other Security	• Camera privacy shutter • Glance by Mirametrix	• Camera privacy shutter • Glance by Mirametrix	• Camera privacy shutter • Glance by Mirametrix	• Camera privacy shutter • Glance by Mirametrix	• Camera privacy shutter • Glance by Mirametrix	• Camera privacy shutter • Glance by Mirametrix	• Camera privacy shutter • Glance by Mirametrix	• Camera privacy shutter • Glance by Mirametrix	• Camera privacy shutter • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix	• Camera privacy shutter • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix	• Camera privacy shutter • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)	• Camera privacy shutter • Computer Vision-based User Presence Sensing including lock on leave • IR camera for Windows Hello (facial recognition) • Glance by Mirametrix • Privacy Guard with Privacy Alert (models with ThinkPad Privacy Guard display)
MANAGEABILITY
System Management	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise	Intel vPro Enterprise
SERVICE
Base Warranty	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in	3-year, Courier or Carry-in
Included Upgrade	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None
ACCESSORIES
Bundled Accessories	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None
CERTIFICATIONS
Green Certifications	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0	• ENERGY STAR 8.0 • EPEAT Gold Registered • ErP Lot 6/26 • RoHS compliant • TCO Certified 9.0
Other Certifications	• Eyesafe Certified 2.0 • Intel Evo Platform	• Eyesafe Certified 2.0 • Intel Evo Platform	• Eyesafe Certified 2.0 • Intel Evo Platform	• Eyesafe Certified 2.0 • Intel Evo Platform	• Eyesafe Certified 2.0 • Intel Evo Platform	• Eyesafe Certified 2.0 • Intel Evo Platform	• Eyesafe Certified 2.0 • Intel Evo Platform	• Eyesafe Certified 2.0 • Intel Evo Platform	• Eyesafe Certified 2.0 • Intel Evo Platform	• Eyesafe Certified 2.0 • Intel Evo Platform	• Eyesafe Certified 2.0 • Intel Evo Platform	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)	• Intel Evo Platform • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)
Mil-Spec Test	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed	MIL-STD-810H military test passed
Model Information
Product	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11	ThinkPad X1 Carbon Gen 11
Region	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE	WE
Country/Region	France	Italy	Belgium	Netherlands	Sweden	Switzerland	Spain	UK	Italy	Sweden	Switzerland	Netherlands	France	Italy	Belgium	Netherlands	Sweden	Portugal	Spain	UK	France	Italy	Belgium	Sweden	Portugal	Spain	UK	France	Italy	Belgium
Machine Type	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM	21HM
TopSeller	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No
EAN / UPC / JAN	0198158772068	0198158771894	0198158771962	0198158772129	0198158771979	0198158772099	0198158772037	0198158771955	0198158771887	0198158772013	0198158771931	0198158772051	0198158772136	0198158772075	0198158772105	0198158771917	0198158772044	0198158772112	0198158771993	0198158772006	0198158772952	0198158772921	0198158772891	0198158772945	0198158772907	0198158772969	0198158771900	0198158772853	0198158772846	0198158772884
End of Support	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10	2029-10-10
Announce Date	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07	2025-04-07

nvidia; usb; ssd

Platform Specifications

Add to compare

Product Compare (0)

PDF Mail to

Last updated: 2023-12-29

ThinkPad X1 Carbon Gen 11

Operating Requirements

Operating Environment

Performance

Processor

Processor Family

13th Generation Intel® U or P Series Core i5 / i7 Processor

Processor^**^[1]

Processor Name	Cores	Threads	Base Frequency	Max Frequency	Cache	Processor Graphics
Core i5-1335U	10 (2 P-core + 8 E-core)	12	P-core 1.3GHz / E-core 0.9GHz	P-core 4.6GHz / E-core 3.4GHz	12MB	Intel® Iris® Xe Graphics
Core i5-1340P	12 (4 P-core + 8 E-core)	16	P-core 1.9GHz / E-core 1.4GHz	P-core 4.6GHz / E-core 3.4GHz	12MB	Intel® Iris® Xe Graphics
Core i5-1345U	10 (2 P-core + 8 E-core)	12	P-core 1.6GHz / E-core 1.2GHz	P-core 4.7GHz / E-core 3.5GHz	12MB	Intel® Iris® Xe Graphics
Core i7-1355U	10 (2 P-core + 8 E-core)	12	P-core 1.7GHz / E-core 1.2GHz	P-core 5.0GHz / E-core 3.7GHz	12MB	Intel® Iris® Xe Graphics
Core i7-1360P	12 (4 P-core + 8 E-core)	16	P-core 2.2GHz / E-core 1.6GHz	P-core 5.0GHz / E-core 3.7GHz	18MB	Intel® Iris® Xe Graphics
Core i7-1365U	10 (2 P-core + 8 E-core)	12	P-core 1.8GHz / E-core 1.3GHz	P-core 5.2GHz / E-core 3.9GHz	12MB	Intel® Iris® Xe Graphics
Core i7-1370P	14 (6 P-core + 8 E-core)	20	P-core 1.9GHz / E-core 1.4GHz	P-core 5.2GHz / E-core 3.9GHz	24MB	Intel® Iris® Xe Graphics

Notes:

1. Intel® Core i5-1340P, i5-1350P and i7-1360p are for special bid only.

Operating System

Operating System^**

Windows® 11 Pro
Windows® 11 Home
Windows® 11 Home Single Language
Windows® 11 DG Windows® 10 Pro 64
Fedora Linux^[1]
Ubuntu Linux^[2]
Linux^[3]
No preload operating system

Notes:

1, 2, 3. Some features may not be supported on the system with Linux preload, including but not limited to Intel RST RAID, MIPI computer vision camera, WWAN, Human Presence Detection, etc.

Graphics

Graphics	Type	Memory	TGP	Key Features
Intel® Iris® Xe Graphics	Integrated	Shared	Share CPU TDP	DirectX® 12.1

Monitor Support

Monitor Support^[1]

Supports up to 4 independent displays (native display and 3 external monitors via Thunderbolt™ and HDMI®) • HDMI® supports up to 4K@60Hz • Thunderbolt™ supports up to 5K@60Hz

Notes:

1. Refresh rates >60hz also supported, however max resolution will be limited.

Chipset

Intel® SoC (System on Chip) platform

Memory

Max Memory

16GB soldered memory, not upgradable
32GB soldered memory, not upgradable
64GB soldered memory, not upgradable

Memory Slots

Memory soldered to systemboard, no slots, 8-channel

Memory Type^**

LPDDR5/x-6000 (32GB)^[1]
LPDDR5/x-6400 (16GB)^[2]
LPDDR5x-6000 (64GB)^[3]

Notes:

1. Installed memory is actually LPDDR5-6400 or LPDDR5x-7500 but run as LPDDR5-6000 or LPDDR5x-6000 due to platform limitation.
2. Installed LPDDR5x memory is actually LPDDR5x-7500 but run as LPDDR5x-6400 due to platform limitation.
3. Installed memory is actually LPDDR5x-7500 but run as LPDDR5x-6000 due to platform limitation.

Storage

Storage Support^[1]

One drive, up to 2TB M.2 2280 SSD

Storage Slot

One M.2 2280 PCIe® 4.0 x4 slot

Storage Type^**

Disk Type	Interface	Offering	Security
M.2 2280 SSD	PCIe® NVMe®, PCIe® 4.0 x4	256GB / 512GB / 1TB	Opal 2.0
M.2 2280 SSD	PCIe® NVMe®, PCIe® 4.0 x4 Performance	512GB / 1TB / 2TB	Opal 2.0

Notes:

1. The storage capacity supported is based on the test results with current Lenovo® storage offerings.

Removable Storage

Card Reader

No card reader

Multi-Media

Audio Chip

High Definition (HD) Audio, Realtek® ALC3306 codec

Speakers

Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos®

Microphone

Quad-microphone array, 360° far-field, Dolby Voice®

Camera^**

HD 720p, with privacy shutter, fixed focus
FHD 1080p + IR discrete, with privacy shutter, MIPI, fixed focus, Computer Vision
FHD 1080p + IR hybrid, with privacy shutter, fixed focus
FHD 1080p, with privacy shutter, fixed focus

Battery

Battery^[1]

57Wh Rechargeable Li-ion Battery, supports Rapid Charge (charge up to 80% in 1hr) with 65W AC adapter

Battery Life^[2]

Configuration 1 (max battery life) MobileMark® 25: up to 13.95 hr with 658 performance score @250nits JEITA 2.0: up to 28.5 hr @150nits Local video playback: up to 22.9 hr @150nits Alternate configuration 2 MobileMark® 25: up to 13.63 hr with 654 performance score @250nits JEITA 2.0: up to 26.4 hr @150nits Local video playback: up to 20.5 hr @150nits Alternate configuration 3 MobileMark® 25: up to 13.48 hr with 642 performance score @250nits JEITA 2.0: up to 24.8 hr @150nits Local video playback: up to 19.8 hr @150nits

Notes:

1. Rapid charge is only guaranteed when the computer is turned off or in standby mode or in hibernation mode. When the computer is powered on, the Charge Time will vary depending on system power consumption and AC adapter power.
2. Configuration 1 (max battery life): WUXGA (non-touch), Intel® i5-1345U, 16GB LPDDR5x, Win 11, 57Wh battery, best power efficiency power mode Alternate configuration 2: WUXGA (non-touch), Intel® i5-1340P, 16GB LPDDR5x, Win 11, 57Wh battery, best power efficiency power mode Alternate configuration 3: WUXGA (non-touch), Intel® i5-1350P, 16GB LPDDR5x, Win 11, 57Wh battery, best power efficiency power mode All battery life claims are approximate maximum and based on results using MobileMark® 25, JEITA 2.0, continuous 1080p local video playback (using default Media Player in Fullscreen mode with 150nits brightness and default volume level), or Google Power Load Test (PLT) battery-life benchmark tests. Actual battery life will vary depending on many factors such as product configuration, software, wireless functionality, power management settings, and screen brightness. The maximum capacity of the battery will decrease with time, ambient temperature and use. Refer to Microsoft® link for more information about the Windows® Performance power slider.

Power Adapter

Power Adapter^**^[1]

45W USB-C® (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
45W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® slim (2-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
65W USB-C® slim (3-pin) AC adapter, supports PD 3.0, 100-240V, 50-60Hz
No power adapter^[2]

Notes:

1. AC adapter offerings depend on the country.
2. No power adapter is for special bid only.

Design

Display

Display^**

Size	Resolution	Touch	Type	Brightness	Surface	Aspect Ratio	Contrast Ratio	Color Gamut	Viewing Angle (L/R/U/D)	Key Features
14"	WUXGA (1920x1200)	None	IPS^[1]	400nits	Anti-glare	16:10	1000:1	100% sRGB	85° / 85° / 85° / 85°	Low power, Eyesafe® Certified 2.0
14"	WUXGA (1920x1200)	Multi-touch	IPS^[2]	400nits	Anti-glare	16:10	1000:1	100% sRGB	85° / 85° / 85° / 85°	Low power, Eyesafe® Certified 2.0
14"	WUXGA (1920x1200)	Multi-touch	IPS^[3]	500nits	Anti-glare	16:10	1000:1	100% sRGB	85° / 85° / 85° / 85°	ThinkPad® Privacy Guard
14"	2.2K (2240x1400)	None	IPS^[4]	300nits	Anti-glare	16:10	1500:1	100% sRGB	85° / 85° / 85° / 85°	TÜV Low Blue Light (Hardware Solution)
14"	2.8K (2880x1800)	None	OLED	400nits	Anti-glare, anti-reflection, anti-smudge	16:10	100,000:1	100% DCI-P3	85° / 85° / 85° / 85°	DisplayHDR™ True Black 500, Dolby Vision®, Eyesafe® Certified 2.0

Touchscreen

On-cell multi-touch, supports 10-point touch
Non-touch

Notes:

1, 2, 3, 4. IPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS.

Input Device

Pen

No support

Keyboard

6-row, spill-resistant, air intake design, multimedia Fn keys with Unified Communications controls

Keyboard Backlight

LED backlight

UltraNav

TrackPoint® pointing device and glass surface multi-touch 3-button Trackpad, 56 x 110 mm (2.20 x 4.33 inches)

Mechanical

Dimensions (WxDxH)^[1]^{Click here to see dimension diagram}

Models	Dimensions
Models with 720p camera	315.6 x 222.5 x 14.96 mm (12.43 x 8.76 x 0.59 inches)
Models with other camera	315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)

Weight^[2]

Starting at 1.12 kg (2.48 lbs)

Case Color^**

Deep black, paint
Deep black, weave

Case Material

Carbon fiber (top), aluminium (bottom)

Notes:

1. The system dimensions may vary depending on configurations.
2. The system weight is approximate and based on results in Lenovo® lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model.

Connectivity

Network

WLAN + Bluetooth

Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 Wi-Fi® + Bluetooth® 5.3^[1]

WWAN^**

Wireless WAN upgradable to 4G or 5G (with antenna ready)
Fibocom L860-GL-16, 4G LTE CAT16, MIMO 4x4, M.2 card, with embedded eSIM functionality
Fibocom FM350-GL, 5G Sub-6 GHz, M.2 card, with embedded eSIM functionality
No support

SIM Card

No physical SIM card inbox

Ethernet

No onboard Ethernet^[2]

NFC

Near Field Communication
No support

Notes:

1. Wi-Fi 6E full features might be limited by country-level restrictions. Wi-Fi 6E is only enabled on Windows 11 and operates as Wi-Fi 6 with Windows 10. 6GHz Wi-Fi 6E operation is dependent on the support of the operating system, routers/APs/Gateways that support Wi-Fi 6E, and the regional regulatory certifications & spectrum allocation. Bluetooth 5.3 operation requires Windows 11. For more information please visit General Bluetooth Support Information on Microsoft.
2. Ethernet support via optional Lenovo USB-C to Ethernet Adapter.

Ports^[1]^{Click here to see ports position}

Standard Ports

1x USB 3.2 Gen 1
1x USB 3.2 Gen 1 (Always On)
2x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4a)
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)

Optional Ports

1x Nano-SIM card slot (WWAN support models)

Notes:

1. The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB4® 20Gbps / USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s; USB4® 40Gbps (USB 40Gbps): 40 Gbit/s; Thunderbolt™ 3/4: 40 Gbit/s.

Docking

Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® X1 Carbon Gen 11

Security & Privacy

Security

Security Chip

Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Physical Locks

Kensington® Nano Security Slot, 2.5 x 6 mm

Smart Card Reader

No smart card reader

Fingerprint Reader

Touch style fingerprint reader integrated in power button, match-on-chip

BIOS Security

NVMe® password
Power-on password
Supervisor password
System management password
Certificate-based BIOS athentication
FIDO (Fast Identity Online) authentication
Self-healing BIOS

Other Security

Camera privacy shutter
(Optional) Computer Vision-based User Presence Sensing including lock on leave
(Optional) IR camera for Windows® Hello (facial recognition)
Glance by Mirametrix®
Privacy Guard with Privacy Alert (models with ThinkPad® Privacy Guard display)

Manageability

System Management

System Management^**

Intel® vPro® Enterprise^[1]
Intel® vPro® Essentials^[2]
Non-vPro®

Notes:

1, 2. Intel vPro offers a superset of DASH’s defined capabilities.

Service

Warranty

Base Warranty^**

1-year courier or carry-in service
1-year courier or carry-in with 2-year system board service (Korea only)
1-year limited onsite service
3-year (1-yr battery) courier or carry-in service
3-year (1-yr battery) limited onsite service
No base warranty

Accessories

Bundled Accessories

Bundled Accessories^***^[1]

Lenovo® HDMI® to VGA Monitor Adapter
Lenovo® USB-C® to Ethernet Adapter (1Gbps)
None

Notes:

1. For more compatible accessory solutions, please visit Accessories for ThinkPad® X1 Carbon Gen 11.

Operating Requirements

Operating Environment

Temperature^[1]

Operating: 5°C (41°F) to 35°C (95°F)
Storage and transportation in original shipping package: -20°C (-4°F ) to 60°C (140°F)
Storage without package: 5°C (41°F) to 43°C (109°F)

Relative Humidity

Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
Storage and transportation: 5% to 95% at wet-bulb temperature 27°C (81°F)

Altitude

Maximum altitude (without pressurization): 3048 m (10,000 ft)

Notes:

1. When you charge the battery, its temperature must be no lower than 10°C (50°F).

Environmental

Sustainability

Material^[1]

90% recycled magnesium on keyboard frame 55% recycled aluminium on bottom cover 90% PCC recycled plastic used in speaker enclosure 25-30% PCC recycled plastic used in the 57Wh battery enclosure 90% PCC recycled plastic used in standard 45W and 65W adapters Low-temperature solder Retail or standard packaging: plastic free packaging with 100% bamboo sugarcane fiber Bulk packaging: 90% recycled and FSC certified content

Notes:

1. PCC: Post Consumer Content, recycled materials from customers.

Certifications

Green Certifications^[1]

Green Certifications^[2]

ENERGY STAR® 8.0
EPEAT™ Gold Registered^[3]
ErP Lot 6/26
RoHS compliant
TCO Certified 9.0

Notes:

1. The items listed under the "Green Certifications" section may not only refer to certification but also registration or self-declaration. For ESG & regulatory compliance documents, please visit https://compliance.lenovo.com.
2. EPEAT™ registration and ENERGY STAR® certification are optional and only available on the models with preloaded OS. Please visit epeat.net and energystar.gov for more information.
3. EPEAT is registered where applicable, please visit epeat.net for registration status by country.

Other Certifications

Mil-Spec Test

MIL-STD-810H military test passed

Other Certifications

(Optional) Eyesafe® Certified 2.0
(Optional) Intel® Evo Platform
(Optional) TÜV Rheinland® Low Blue Light (Hardware Solution)
TÜV Rheinland® Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)

Feature with ** means that only one option listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
Feature with *** means that one or more options listed under the feature can be configured on selected models. Please refer to the model configuration for specific information.
Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS PUBLICATION "AS IS," WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you.
The specifications on this page may not be available in all regions, and may be changed or updated without notice.

1. Click the Excel button to export all models to an Excel file.

2. Or filter the models you need, then click Excel.

By Brand

ThinkPad

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

Machine Types

ThinkBook

Marketing Name

Machine Types

Marketing Name

Machine Types

Marketing Name

Machine Types

Marketing Name

Machine Types

Marketing Name

Machine Types

Marketing Name

Machine Types
