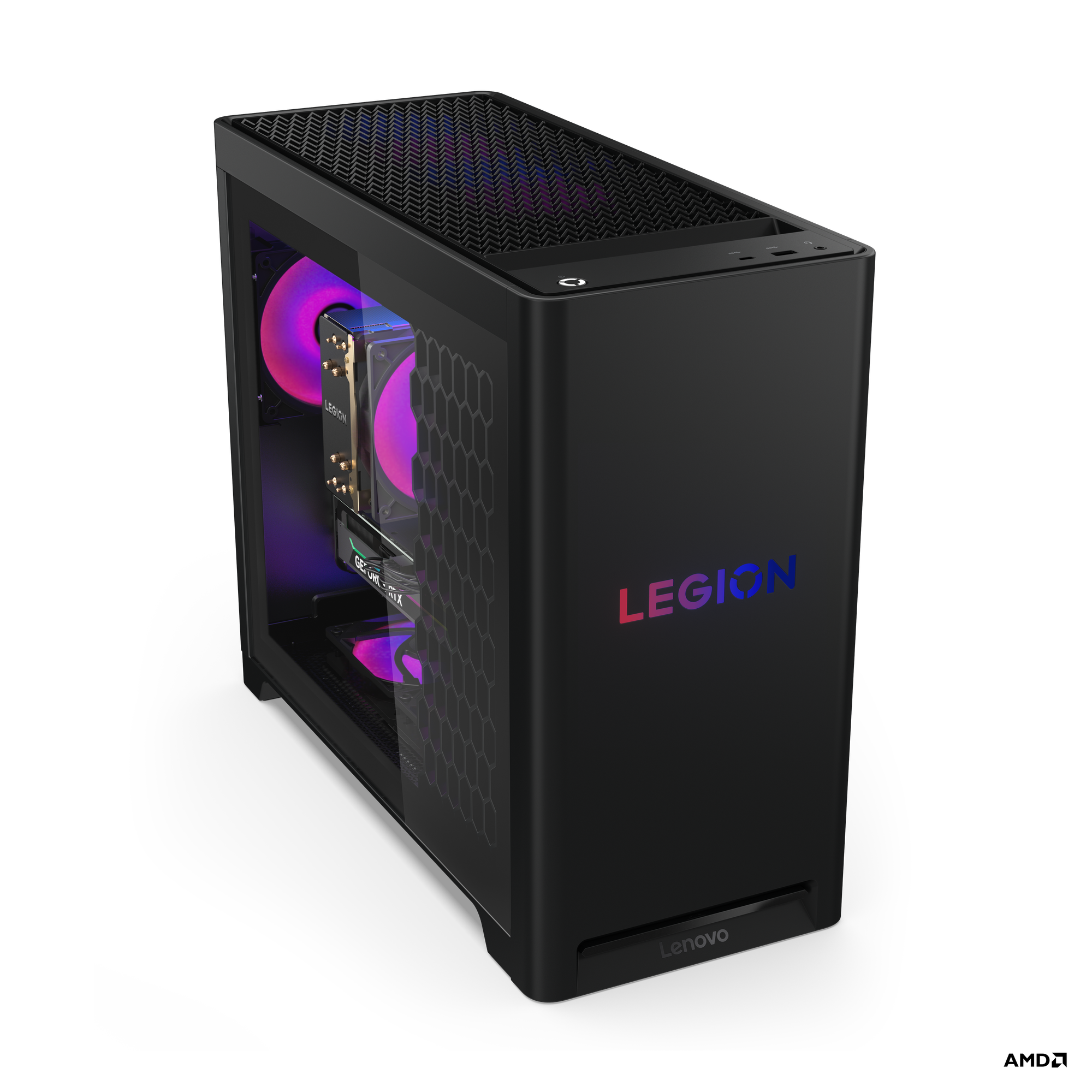

Legion T5 30AGB10

	Up to AMD Ryzen™ 9 7950X3D
	Up to Windows® 11 Pro
	UP to NVIDIA® GeForce RTX™ 5070 Ti
	Up to 32GB DDR5-5600, four UDIMM
	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD
	Up to 150W 120MM-Fan airflow cooler with ARGB light, M.2 SSD DECO Mylar® Heatsink, PCH Heatsink, VRM Heatsink

Note: some configurations are only available on selected models and may not be available in all regions

Legion T5 30AGB10
Specs Purchase Help

Overview
Models
Specifications
Documentation
User Guide
Accessories
Machine Type: 90YJ
Services
Machine Type: 90YJ

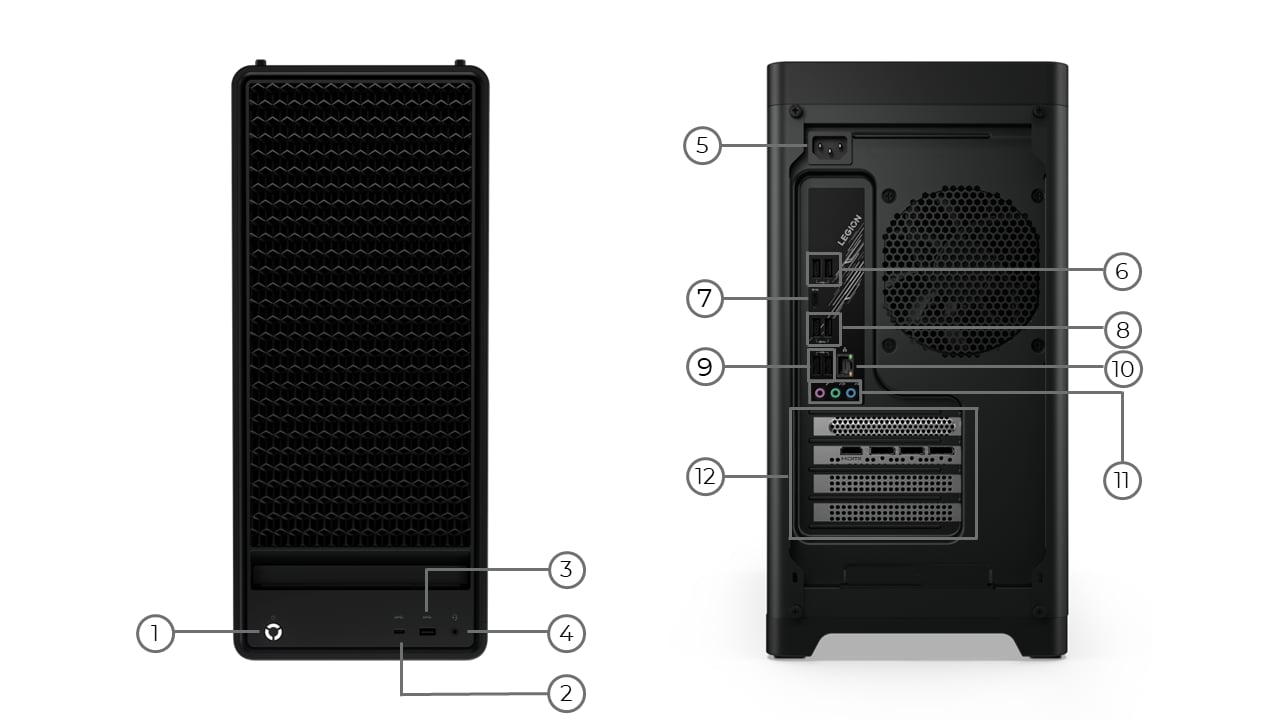

1. Power button	7. USB-C® (USB 10Gbps)
2. 1x USB-C® (USB 5Gbps)	8. 2x USB-A (USB 5Gbps)
3. 1x USB-A (USB 5Gbps)	9. 2x USB-A (Hi-Speed USB)
4. 1x headphone / microphone combo jack (3.5mm)	10. Ethernet (RJ-45)
5. Power connector	11. 3x Audio connectors
6. 2x USB-A (USB 10Gbps)	12. Optional ports on expansion cards*

Notes:

Items with * are only available on selected models

Country / Region Select

Compare (0)

Highlight the differences

Excel

Total loaded items: 134

Model	90YJ0058YSCompare	90YJ0056KZCompare	90YJ004YRMCompare	90YJ004XRMCompare	90YJ004WCFCompare	90YJ004VUSCompare	90YJ004UKZCompare	90YJ004TKZCompare	90YJ004RUKCompare	90YJ004QSCCompare	90YJ004MRMCompare	90YJ004JYSCompare	90YJ004FRMCompare	90YJ004EFCCompare	90YJ004DFCCompare	90YJ004CYSCompare	90YJ004AYSCompare	90YJ0049YSCompare	90YJ0046CFCompare	90YJ0045CFCompare	90YJ003VKACompare	90YJ003UKACompare	90YJ003TCQCompare	90YJ003QCQCompare	90YJ003PCQCompare	90YJ003NCQCompare	90YJ003MMWCompare	90YJ003LMWCompare	90YJ003KMWCompare	90YJ003EAMCompare
PERFORMANCE
Processor	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 7 7700X (8C / 16T, 4.5 / 5.4GHz, 8MB L2 / 32MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 7 7700X (8C / 16T, 4.5 / 5.4GHz, 8MB L2 / 32MB L3)	AMD Ryzen 9 7950X3D (16C / 32T, 4.2 / 5.7GHz, 16MB L2 / 128MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 7 7700X (8C / 16T, 4.5 / 5.4GHz, 8MB L2 / 32MB L3)	AMD Ryzen 7 7700X (8C / 16T, 4.5 / 5.4GHz, 8MB L2 / 32MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 9 7950X3D (16C / 32T, 4.2 / 5.7GHz, 16MB L2 / 128MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 9 7950X3D (16C / 32T, 4.2 / 5.7GHz, 16MB L2 / 128MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 9 7950X3D (16C / 32T, 4.2 / 5.7GHz, 16MB L2 / 128MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)	AMD Ryzen 7 7700X (8C / 16T, 4.5 / 5.4GHz, 8MB L2 / 32MB L3)	AMD Ryzen 9 7950X3D (16C / 32T, 4.2 / 5.7GHz, 16MB L2 / 128MB L3)	AMD Ryzen 5 7600 (8C / 16T, 3.8 / 5.1GHz, 6MB L2 / 32MB L3)	AMD Ryzen 7 7700X (8C / 16T, 4.5 / 5.4GHz, 8MB L2 / 32MB L3)	AMD Ryzen 7 7700X (8C / 16T, 4.5 / 5.4GHz, 8MB L2 / 32MB L3)	AMD Ryzen 7 7700X (8C / 16T, 4.5 / 5.4GHz, 8MB L2 / 32MB L3)	AMD Ryzen 5 7600 (8C / 16T, 3.8 / 5.1GHz, 6MB L2 / 32MB L3)	AMD Ryzen 7 7800X3D (8C / 16T, 4.2 / 5GHz, 8MB L2 / 96MB L3)
AI PC Category	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC	AI-Powered Gaming PC
Graphics	NVIDIA GeForce RTX 5070 Ti 16GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 Ti 16GB GDDR7	NVIDIA GeForce RTX 5070 Ti 16GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 Ti 16GB GDDR7	NVIDIA GeForce RTX 5070 Ti 16GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 Ti 16GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 Ti 16GB GDDR7	NVIDIA GeForce RTX 5070 Ti 16GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 4060 8GB GDDR6 242 AI TOPS	NVIDIA GeForce RTX 4060 8GB GDDR6 242 AI TOPS	NVIDIA GeForce RTX 4060 8GB GDDR6 242 AI TOPS	NVIDIA GeForce RTX 4060 8GB GDDR6 242 AI TOPS	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7	NVIDIA GeForce RTX 5070 12GB GDDR7
Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset	AMD B650 Chipset
Memory	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600	2x 8GB UDIMM DDR5-5600	2x 8GB UDIMM DDR5-5600	2x 8GB UDIMM DDR5-5600	2x 8GB UDIMM DDR5-5600	2x 8GB UDIMM DDR5-5600	2x 16GB UDIMM DDR5-5600
Memory Slots	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable	Four DDR5 UDIMM slots, dual-channel capable
Max Memory	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600	Up to 32GB DDR5-5600
Storage	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	2TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	2TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	2TB SSD M.2 2280 PCIe 4.0x4 NVMe	2TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	2TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	512GB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	2TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe	1TB SSD M.2 2280 PCIe 4.0x4 NVMe
Storage Support	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each	Up to four drives, 1x 3.5" HDD + 3x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each
Card Reader	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None
Optical	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None
Audio Chip	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec	High Definition (HD) Audio, Realtek ALC623 codec
Speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers	No speakers
Power Supply	850W 90%	850W 90%	850W 90%	500W 85%	850W 90%	850W 90%	850W 90%	850W 90%	850W 90%	850W 90%	850W 90%	850W 90%	850W 90%	500W 85%	850W 90%	850W 90%	500W 85%	500W 85%	850W 90%	850W 90%	850W 90%	850W 90%	500W 85%	850W 90%	500W 85%	850W 90%	500W 85%	500W 85%	500W 85%	500W 85%
DESIGN
Keyboard	None	None	None	None	USB Calliope Keyboard, Luna Grey, English / French (CA)	USB Calliope Keyboard, Luna Grey, English	None	None	None	USB Calliope Keyboard, Black, Slovenian	None	None	None	None	None	None	None	None	USB Calliope Keyboard, Black, English / French (CA)	USB Calliope Keyboard, Black, English / French (CA)	None	None	None	None	None	None	None	None	None	None
Mouse	None	None	None	None	USB Calliope Mouse, Luna Grey	USB Calliope Mouse, Luna Grey	None	None	None	USB Calliope Mouse, Black	None	None	None	None	None	None	None	None	USB Calliope Mouse, Black	USB Calliope Mouse, Black	None	None	None	None	None	None	None	None	None	None
Expansion Slots	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)	• One PCIe 4.0 x16 • One PCIe 3.0 x4 • Four M.2 slots (one for WLAN, three for SSDs)
Case Color	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black	Eclipse Black
System Lighting	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None

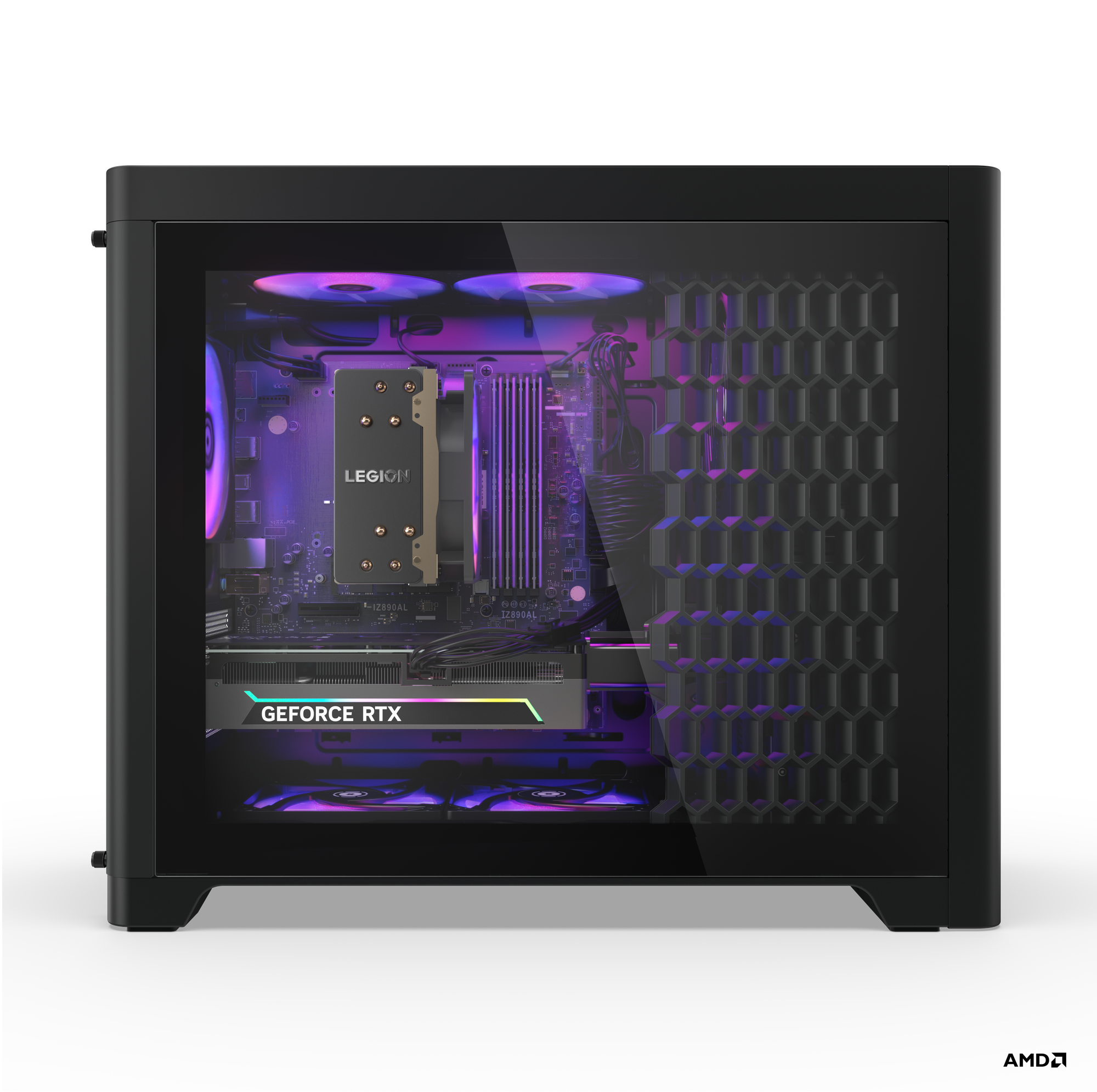

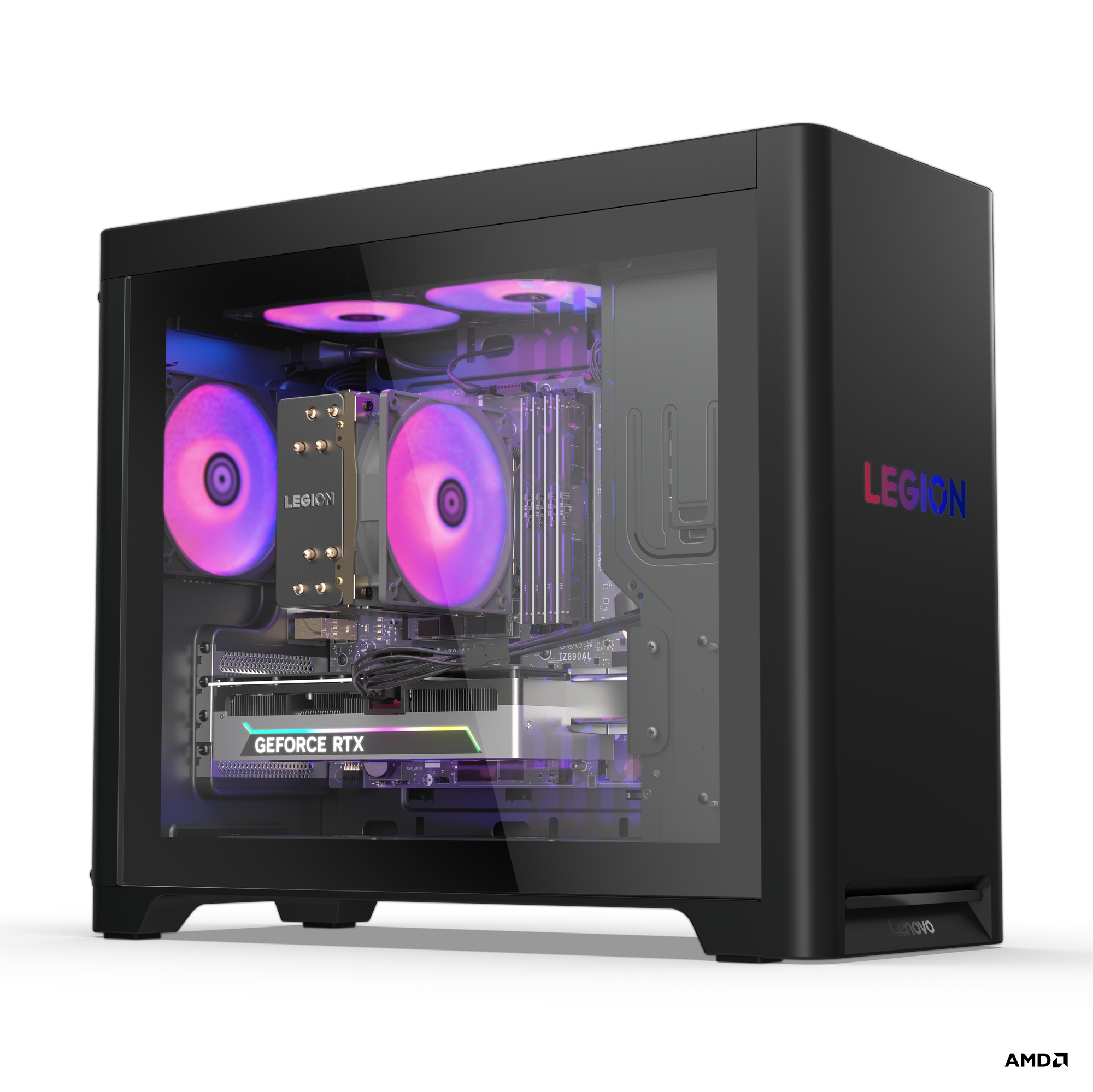

Chassis	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover + Inner Decorate Cover	Transparent Cover	Transparent Cover	Normal Cover	Transparent Cover + Inner Decorate Cover
Cooler	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	M.2 SSD DECO Mylar Heatsink + PCH Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	M.2 SSD DECO Mylar Heatsink + PCH Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	150W 120MM-Fan airflow with ARGB light + PCH Heatsink	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	M.2 SSD DECO Mylar Heatsink + PCH Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	M.2 SSD DECO Mylar Heatsink + PCH Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light	150W 120MM-Fan airflow with ARGB light + PCH Heatsink	150W 120MM-Fan airflow with ARGB light + PCH Heatsink	65W 80MM-Fan airflow + PCH Heatsink	PCH Heatsink + SSD Heatsink + VRM Heatsink + 150W 120MM-Fan airflow with ARGB light
System Fan	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear with ARGB + 2x Top with ARGB	1x Rear + 2x Top	1x Rear with ARGB + 2x Top with ARGB
Pen	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported	Pen Not Supported
Form Factor	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)	Tower (30L)
Dimensions (WxDxH)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)	211 x 490.4 x 413.5 mm (8.3 x 19.3 x 16.28 inches)
Weight	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)	Around 15 kg (33.06 lbs)
CONNECTIVITY
Ethernet	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG	2.5GbE RTL8125BG
WLAN + Bluetooth	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 6E, 802.11ax 2x2 + BT5.3	Wi-Fi 6E, 802.11ax 2x2 + BT5.3	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 6E, 802.11ax 2x2 + BT5.3	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 6E, 802.11ax 2x2 + BT5.3	Wi-Fi 6E, 802.11ax 2x2 + BT5.3	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 6E, 802.11ax 2x2 + BT5.3	Wi-Fi 6E, 802.11ax 2x2 + BT5.3	Wi-Fi 7, 802.11be 2x2 + BT5.4	Wi-Fi 6E, 802.11ax 2x2 + BT5.3	Wi-Fi 6E, 802.11ax 2x2 + BT5.3	Wi-Fi 7, 802.11be 2x2 + BT5.4
WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN	Non-WWAN

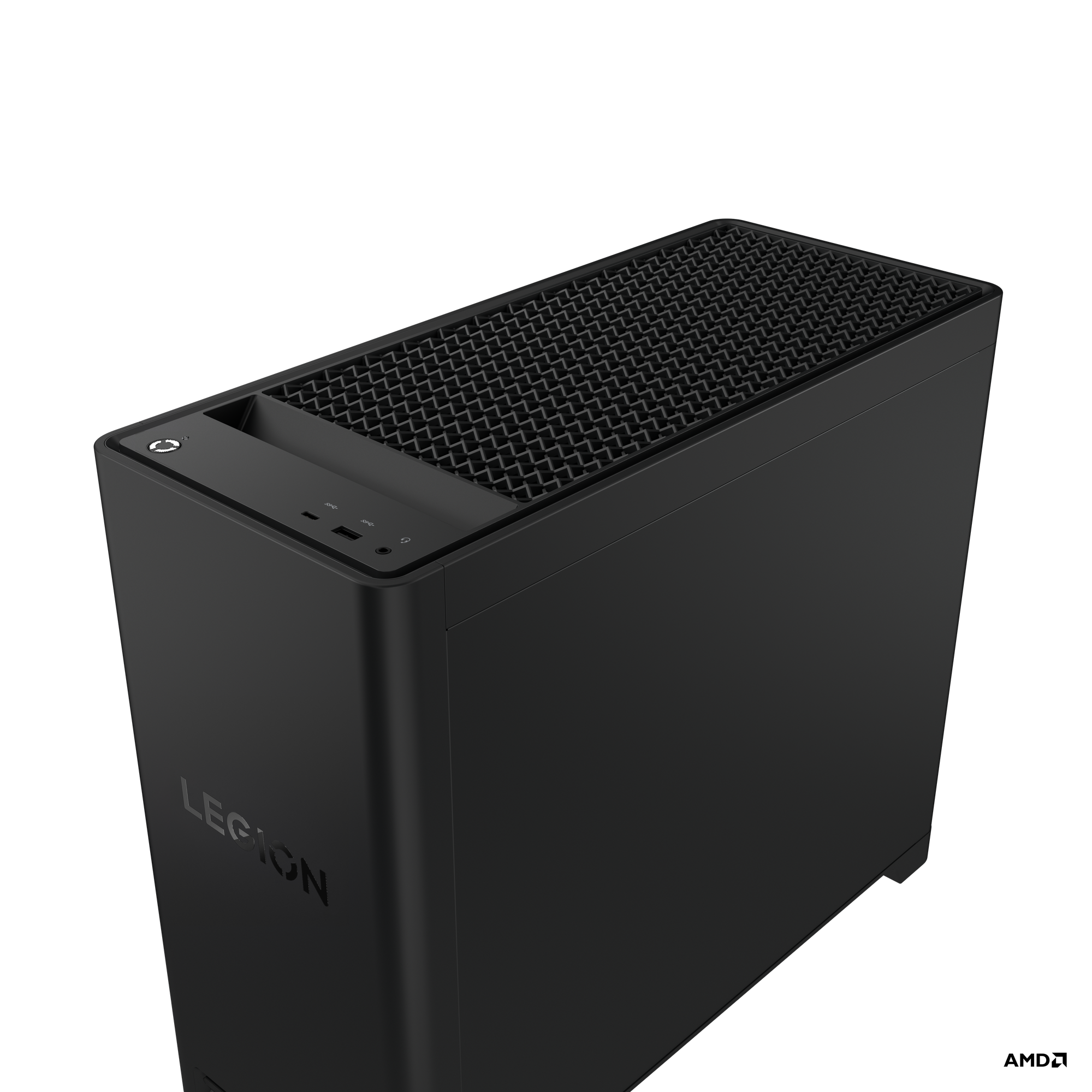

Top Ports	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)	• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1) • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x headphone / microphone combo jack (3.5mm)

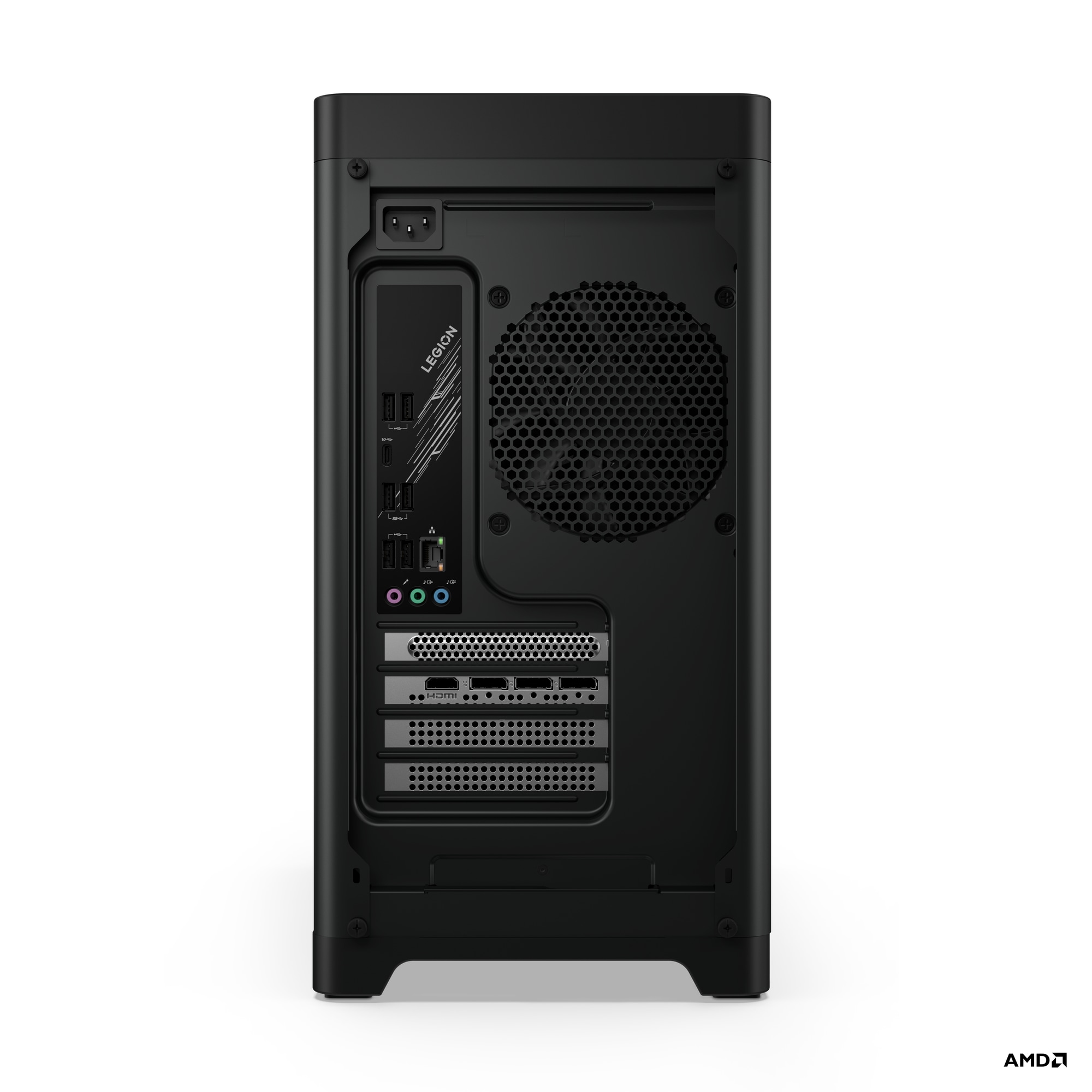

Rear Ports	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)	• 1x USB-C (USB 10Gbps / 3.2 Gen 2) • 2x USB-A (Hi-Speed USB / USB 2.0) • 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) • 1x Ethernet (2.5GbE RJ-45) • 1x power connector • 3x audio out (5.1 channel)
SECURITY & PRIVACY
Security Chip	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset	Firmware TPM 2.0 integrated in chipset
SERVICE
Base Warranty	1-year, Courier or Carry-in	1-year, Courier or Carry-in	2-year, Courier or Carry-in	2-year, Courier or Carry-in	1-year, Mail-in	1-year, Mail-in	1-year, Courier or Carry-in	1-year, Courier or Carry-in	1-year, Courier or Carry-in	2-year, Courier or Carry-in	2-year, Courier or Carry-in	1-year, Courier or Carry-in	2-year, Courier or Carry-in	2-year, Courier or Carry-in	2-year, Courier or Carry-in	1-year, Courier or Carry-in	1-year, Courier or Carry-in	1-year, Courier or Carry-in	1-year, Mail-in	1-year, Mail-in	1-year, Courier or Carry-in	1-year, Courier or Carry-in	2-year, Courier or Carry-in	2-year, Courier or Carry-in	2-year, Courier or Carry-in	2-year, Courier or Carry-in	2-year, Courier or Carry-in	2-year, Courier or Carry-in	2-year, Courier or Carry-in	1-year, Courier or Carry-in
Included Upgrade	3Y Premium Care with Onsite upgrade from 1Y Courier/Carry-in	None	3Y Premium Care with Onsite upgrade from 2Y Courier/Carry-in	3Y Premium Care with Onsite upgrade from 2Y Courier/Carry-in	None	3Y Legion Ultimate Support with Onsite	3Y Courier/Carry-in upgrade from 1Y Courier/Carry-in	3Y Courier/Carry-in upgrade from 1Y Courier/Carry-in	None	None	3Y Premium Care with Onsite upgrade from 2Y Courier/Carry-in	3Y Premium Care with Onsite upgrade from 1Y Courier/Carry-in	None	None	None	3Y Premium Care with Onsite upgrade from 1Y Courier/Carry-in	3Y Premium Care with Onsite upgrade from 1Y Courier/Carry-in	3Y Premium Care with Onsite upgrade from 1Y Courier/Carry-in	None	None	2Y Onsite -Idea DT (ESS)	2Y Onsite -Idea DT (ESS)	None	None	None	None	None	None	None	None
CERTIFICATIONS
Green Certifications	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None
SOFTWARE
Operating System	Windows 11 Home, English	None	None	None	Windows 11 Home, French / English	Windows 11 Pro, English	None	None	Windows 11 Pro, English	None	None	Windows 11 Home, English	None	Windows 11 Home, French	Windows 11 Home, French	Windows 11 Pro, English	Windows 11 Pro, English	Windows 11 Home, English	Windows 11 Home, French / English	Windows 11 Home, French / English	None	Windows 11 Home, Korean / English	Windows 11 Home, English	Windows 11 Home, English	Windows 11 Home, English	Windows 11 Home, English	Windows 11 Home, Nordic (DK/FI/SV/NO/EN)	Windows 11 Home, Nordic (DK/FI/SV/NO/EN)	Windows 11 Home, Nordic (DK/FI/SV/NO/EN)	None
Bundled Software	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None	None
Model Information
Product	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10	Legion T5 30AGB10
Region	WE	CIS	EET	EET	NA	NA	CIS	CIS	WE	EET	EET	WE	EET	WE	WE	WE	WE	WE	NA	NA	HTK	HTK	EET	EET	EET	EET	WE	WE	WE	ANZ
Country/Region	Israel	Kazakhstan	Romania	Romania	Canada	USA	Kazakhstan	Kazakhstan	UK Group	Croatia, Slovenia	Romania	Israel	Romania	France	France	Israel	Israel	Israel	Canada	Canada	Korea	Korea	Cyprus	Cyprus	Cyprus	Cyprus	Nordics	Nordics	Nordics	Australia
Machine Type	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ	90YJ
TopSeller	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	No	TopSeller	TopSeller	No	No	No	No	No	No	No	TopSeller
EAN / UPC / JAN	199271268001	199271247990	199271101070	199271082430	199271070642	199271054635	199271039724	199271039717	199271039397	198158999250	198158972703	198158968416	198158892742	198158829731	198158829724	198158802291	198158802307	198158802314	198158773904	198158773898	198158422390	198158422383	198158295529	198158295536	198158295512	198158295505	198158240543	198158240505	198158240475	198158204033
End of Support	2025-05-04	2025-05-01	2025-04-22	2025-04-21	2025-04-17	2025-04-16	2025-04-16	2025-04-16	2025-04-16	2025-04-15	2025-04-14	2025-04-13	2025-04-11	2025-04-08	2025-04-08	2025-04-07	2025-04-07	2025-04-07	2025-03-31	2025-03-31	2025-03-31	2025-03-31	2025-03-21	2025-03-21	2025-03-21	2025-03-21	2025-03-21	2025-03-21	2025-03-21	2025-03-31
Announce Date	90YJ0058YS	90YJ0056KZ	90YJ004YRM	90YJ004XRM	90YJ004WCF	90YJ004VUS	90YJ004UKZ	90YJ004TKZ	90YJ004RUK	90YJ004QSC	90YJ004MRM	90YJ004JYS	90YJ004FRM	90YJ004EFC	90YJ004DFC	90YJ004CYS	90YJ004AYS	90YJ0049YS	90YJ0046CF	90YJ0045CF	90YJ003VKA	90YJ003UKA	90YJ003TCQ	90YJ003QCQ	90YJ003PCQ	90YJ003NCQ	90YJ003MMW	90YJ003LMW	90YJ003KMW	90YJ003EAM
