| PERFORMANCE |
| Processor | Intel® Core i5-12600, 6C (6P + 0E) / 12T, P-core 3.3 / 4.8GHz, 18MB Intel Max Turbo frequency will vary depending on application workload and the hardware and software configurations, see
http://www.intel.com/technology/turboboost/ for more information. |
| Graphics | Integrated Intel® UHD Graphics 770 |
| Chipset | Intel® Q670 Chipset |
| Memory | 1x 16GB SO-DIMM DDR4-3200 |
| Memory Slots | Two DDR4 SO-DIMM slots, dual-channel capable |
Max MemoryThe max memory is based on the test results with current Lenovo memory offerings. | Up to 64GB DDR4-3200 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal |
| Card Reader | None |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC256-NL codec |
| Speakers | 3Wx2 |
| Camera | 5.0MP |
| Microphone | 2x, Array |
| Power Supply | 180W 90% |
| DESIGN |

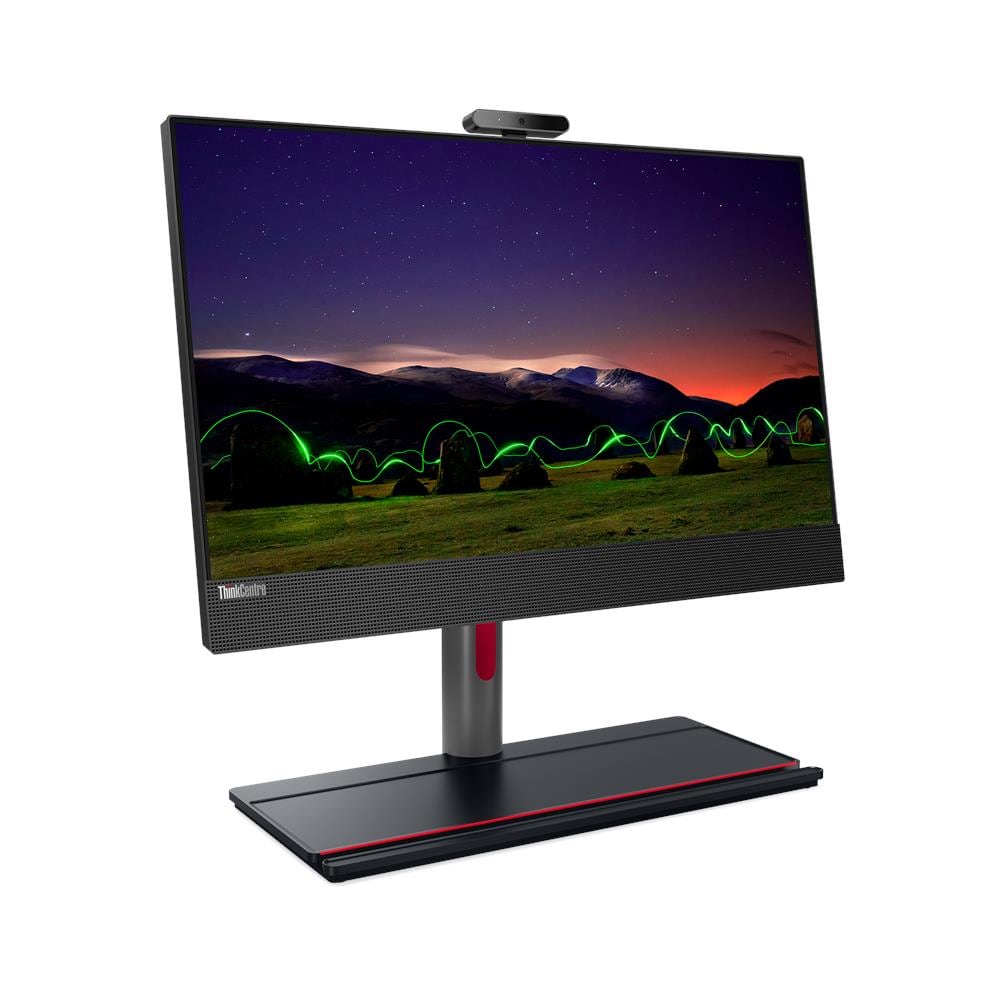

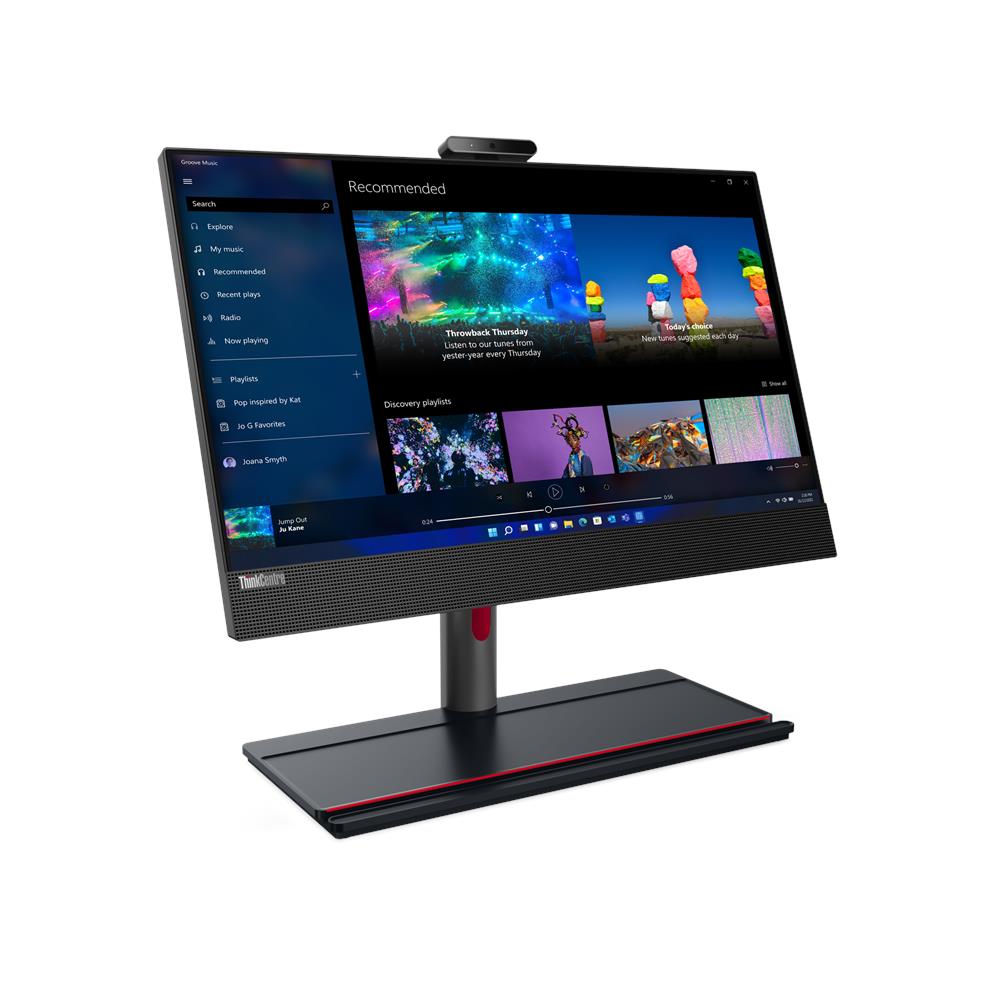

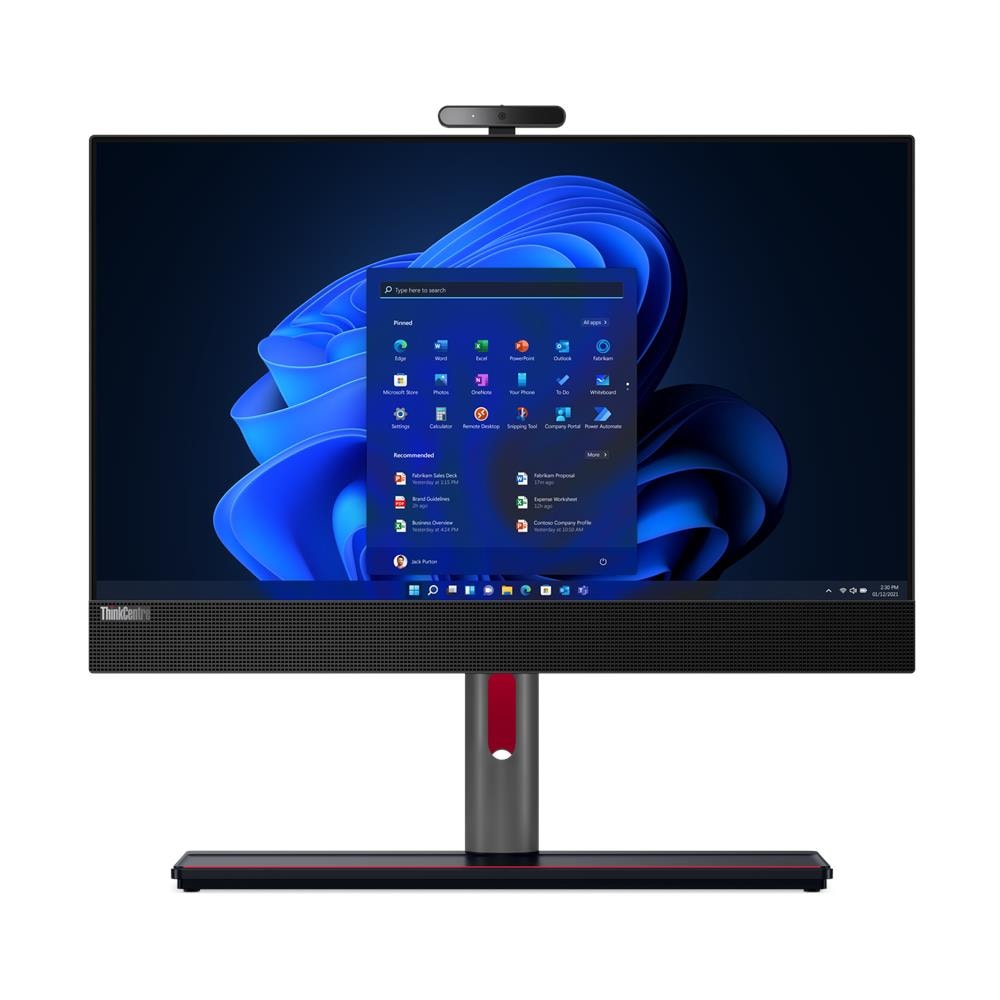

DisplayIPS (in-plane switching) technology may refer to IPS, PLS, ADS, AHVA, AAS. | 23.8" FHD (1920x1080) IPS 250nits Anti-glare, 72% NTSC |
| Touchscreen | None |

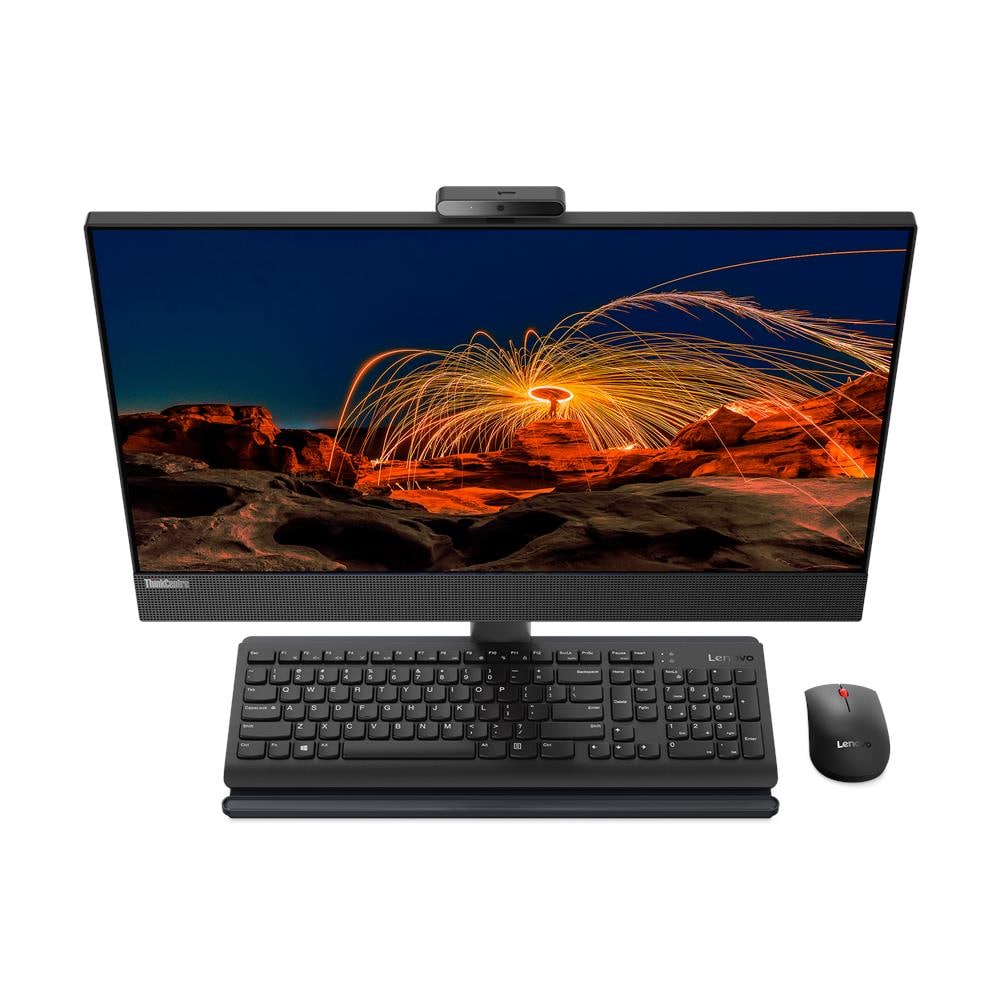

| Keyboard | USB Calliope Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Expansion Slots | Two M.2 slots (one for WLAN, one for SSD) |
| Case Color | Black |

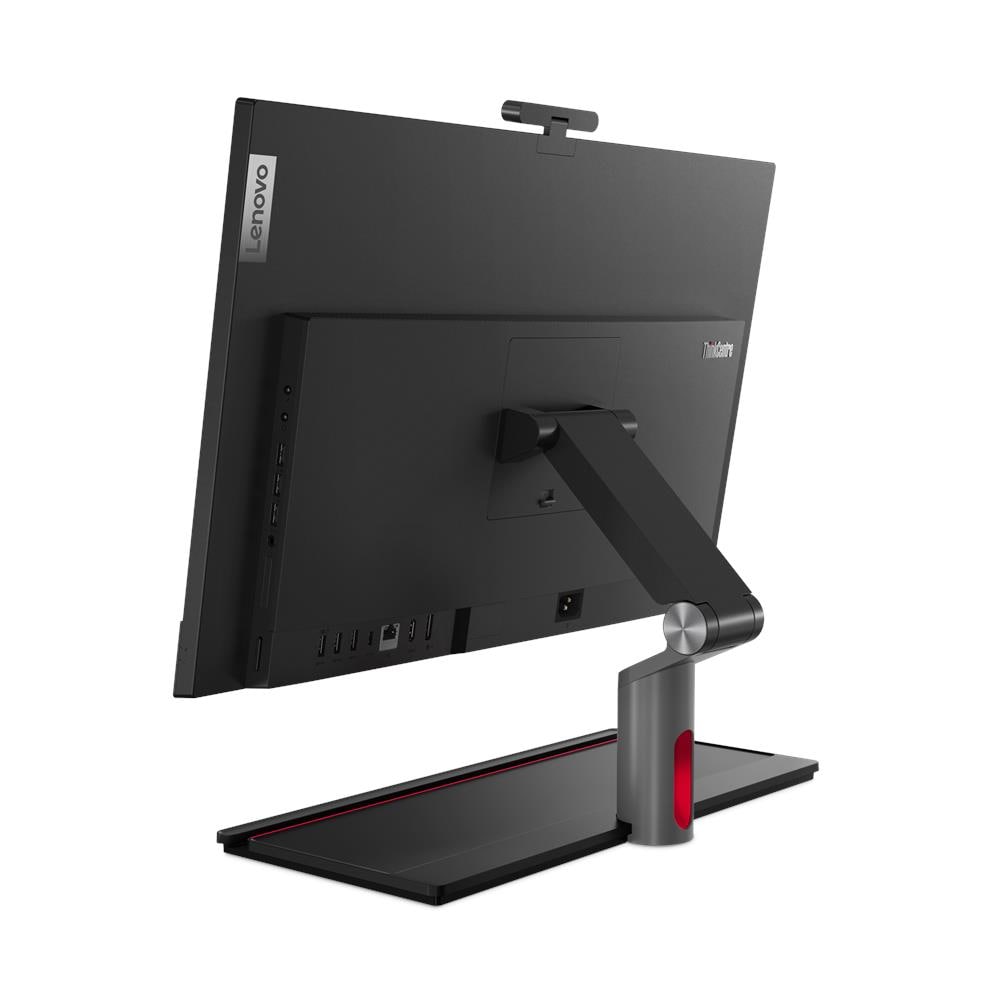

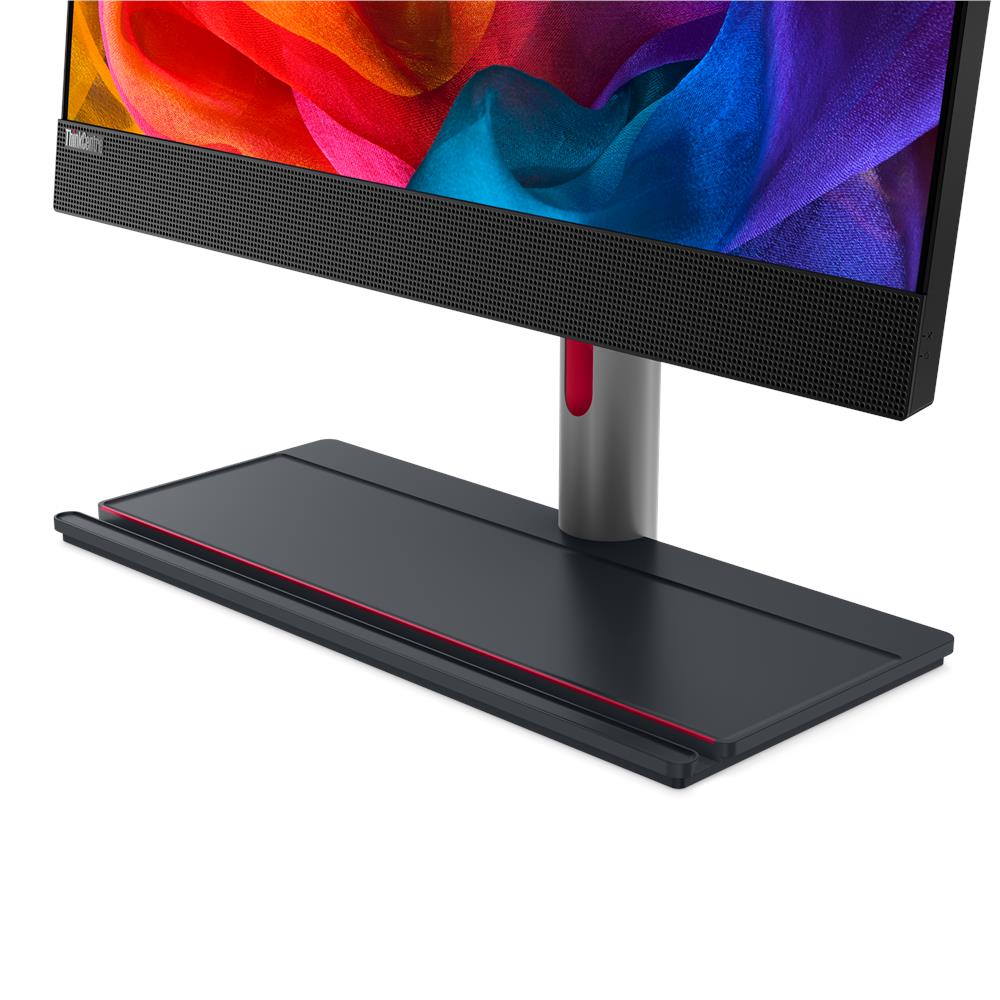

| Stand | UltraFlex V Stand |
| Mounting | VESA mount |
| Pen | Pen Not Supported |
| Form Factor | AIO (23.8 inches) |

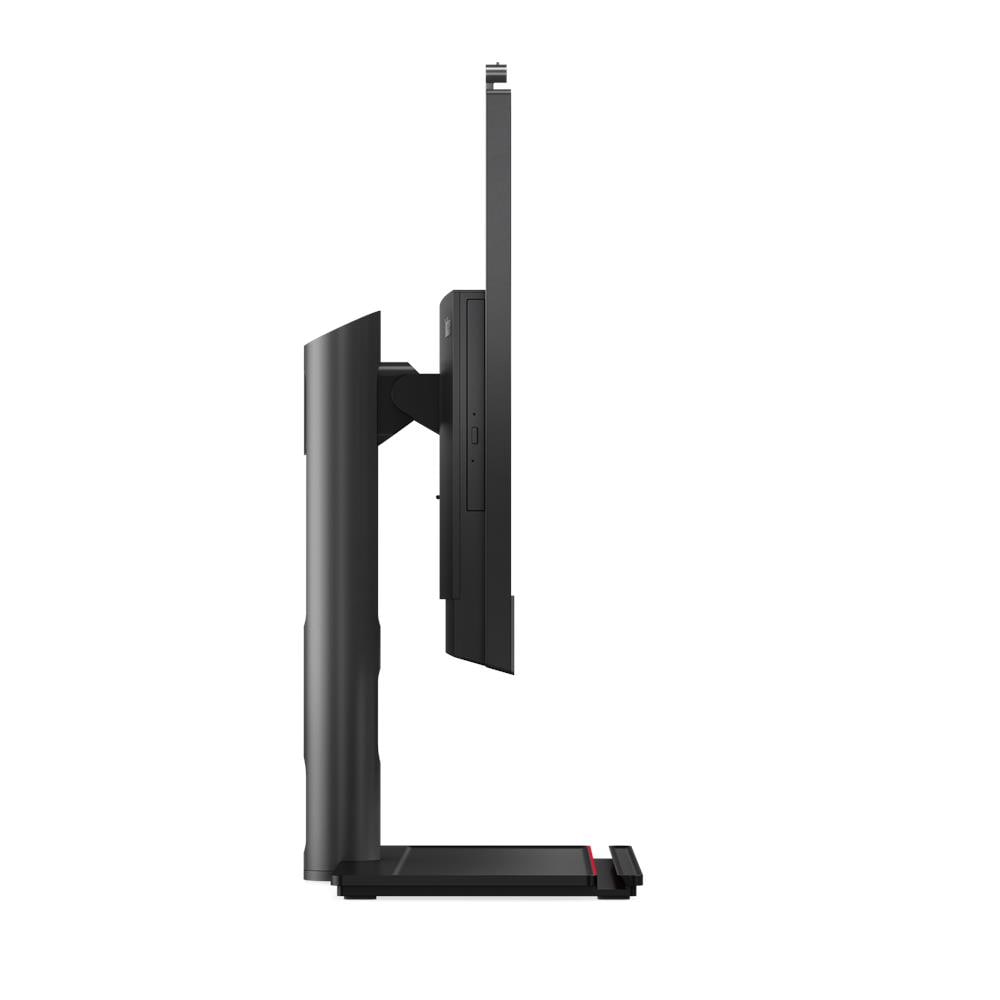

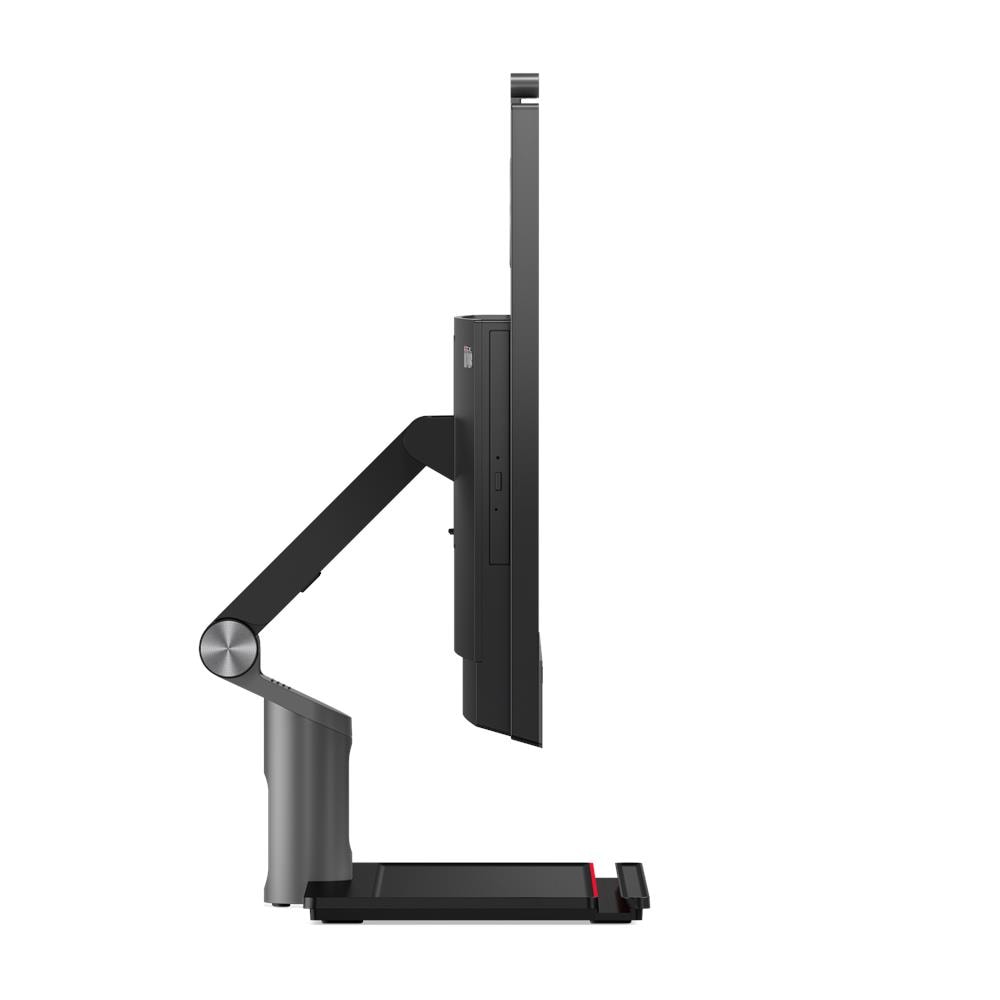

Dimensions (WxDxH)The system dimensions may vary depending on configurations. | Lowest in vertical mode: 539.6 x 216.32 x 387.63 mm (21.24 x 8.52 x 15.26 inches)
Highest in vertical mode: 539.6 x 216.32 x 472 mm (21.24 x 8.52 x 18.58 inches) |
WeightThe system weight is approximate and based on results in Lenovo lab, which varies depending on the source of component, variance of the distribution of each component, and manufacturing process. It may not be the exact weight for each specific model. | Around 8.742 kg (19.27 lbs) |
| CONNECTIVITY |
| WLAN + Bluetooth | Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2 |
| WWAN | Non-WWAN |
| Ethernet | Integrated 100/1000M |

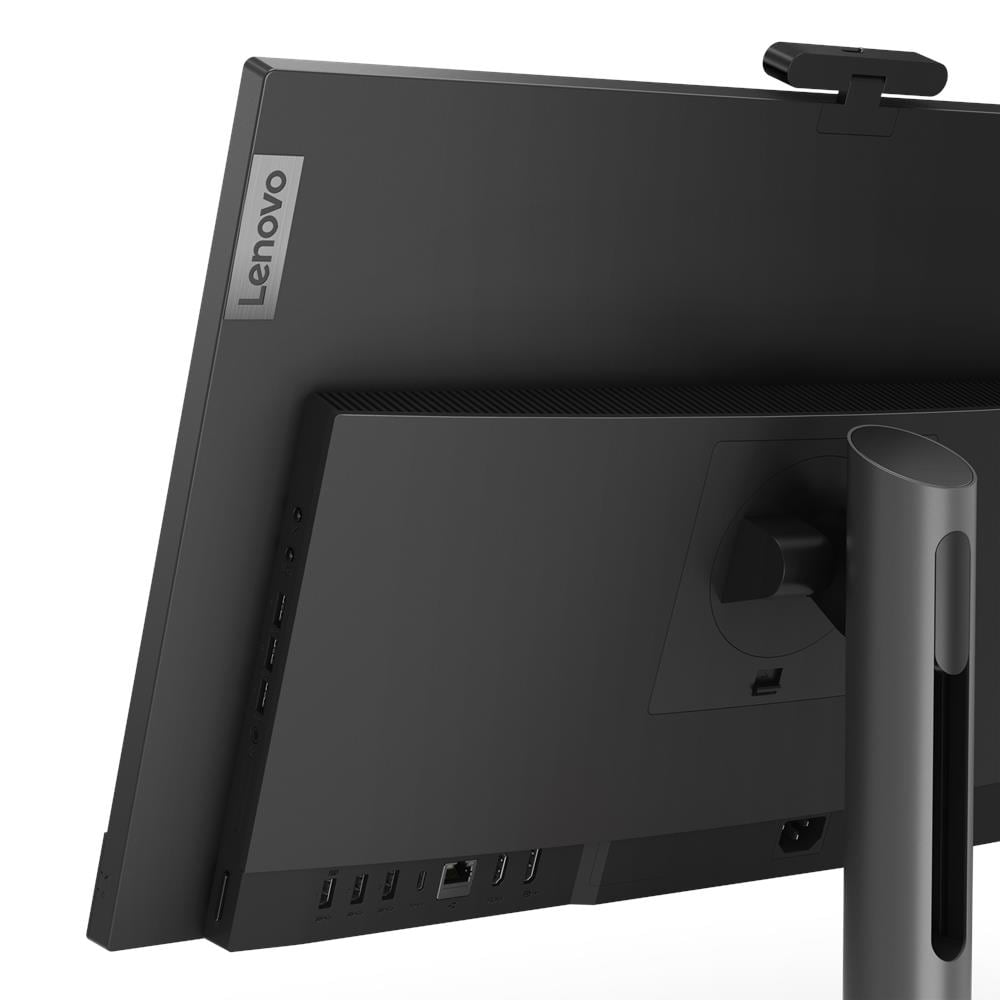

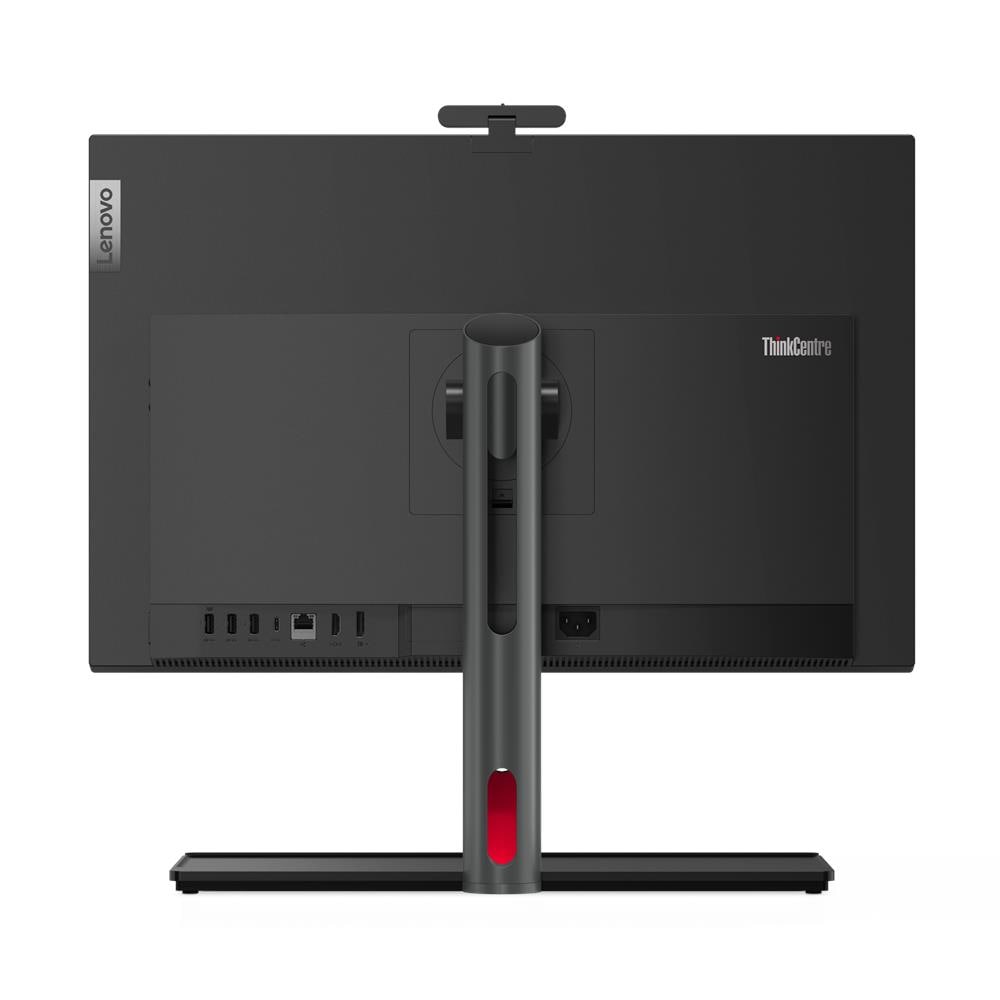

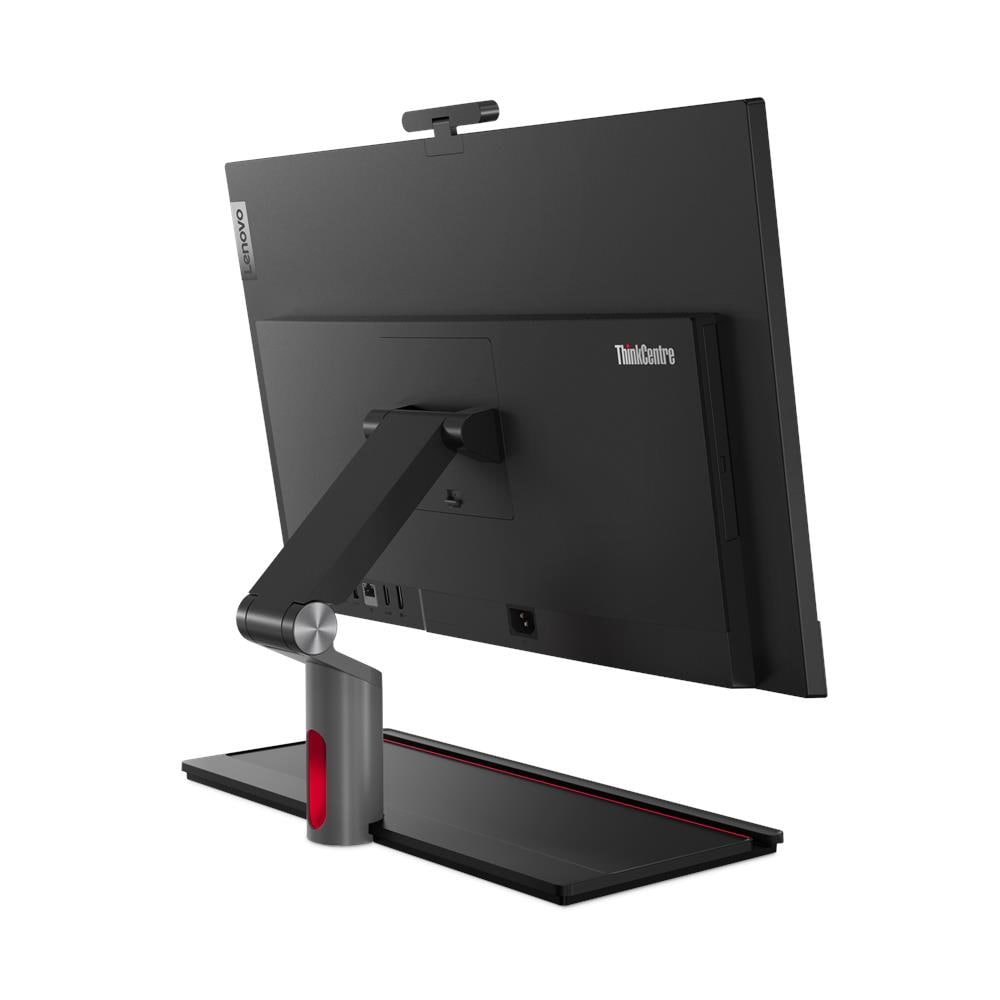

| Rear Ports | - 1x USB-C® 3.2 Gen 2 (support data transfer and 15W charging)
- 3x USB 3.2 Gen 1
- 1x HDMI® (HDMI in 1.4 / HDMI out 2.1 TMDS combo port)
- 1x DisplayPort™ 1.4
- 1x Ethernet (RJ-45)
|
| Optional Rear Ports (configured) | None |

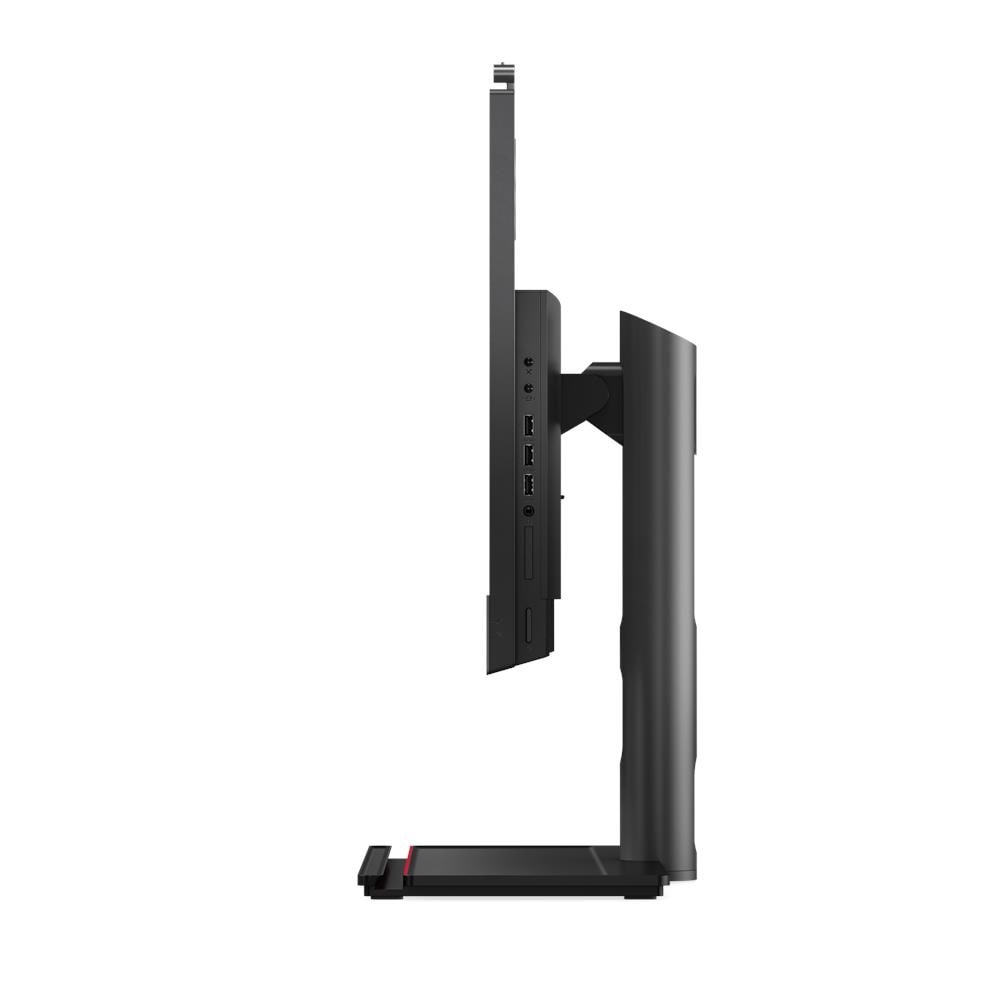

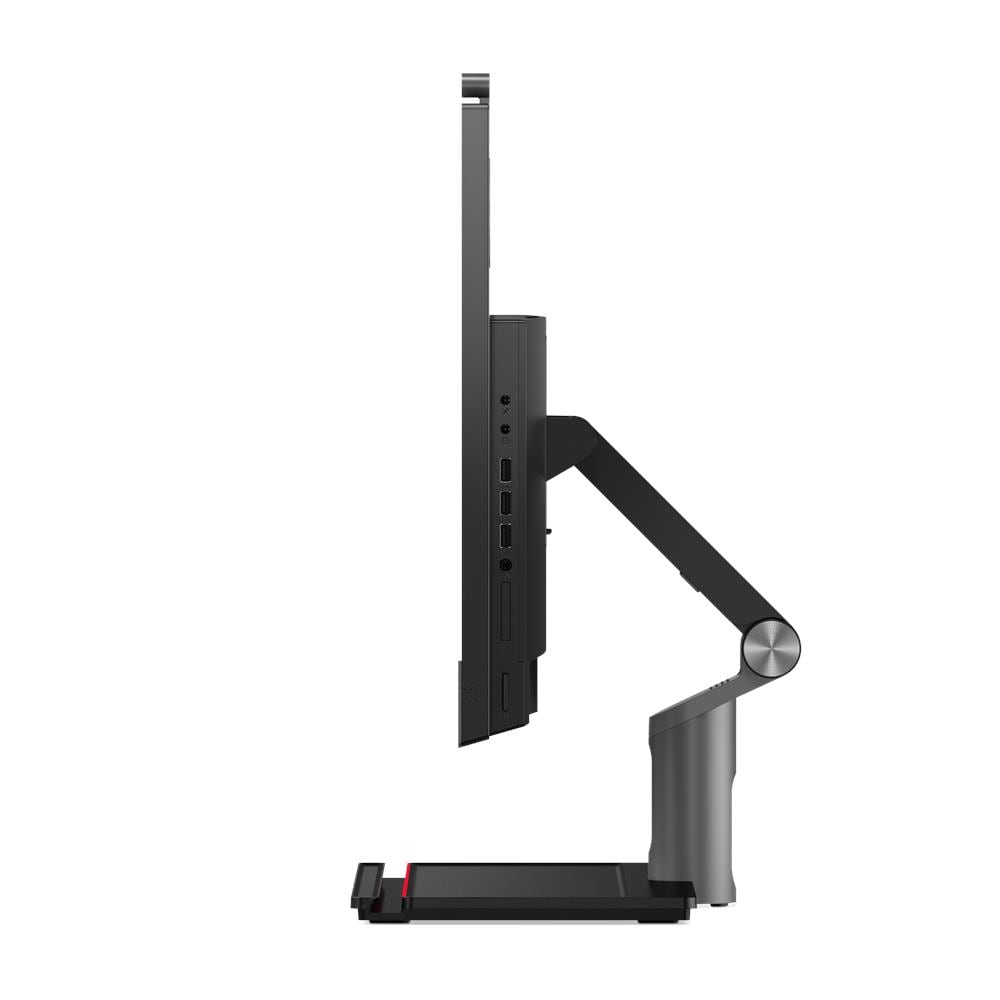

| Right Ports | - 3x USB 3.2 Gen 2
- 1x headphone / microphone combo jack (3.5mm)
|
| Optional Right Ports (configured) | - |
| SECURITY & PRIVACY |
| Security Chip | Discrete TPM 2.0, TCG certified |
| Fingerprint Reader | No fingerprint reader |
| Physical Locks | Kensington® Security Slot™, 3 x 7 mm |
| Chassis Intrusion Switch | None |
| Additional Security | None |
| Other Security | ThinkShutter camera cover (camera models) |
| MANAGEABILITY |
| System Management | Non-vPro® |
| SERVICE |
| Base Warranty | 1-year, Onsite |
| Included Upgrade | None |
| CERTIFICATIONS |
| Green Certifications | - ErP Lot 3
- RoHS compliant
- TCO Certified 9.0
- TCO edge
|
| Other Certifications | - TÜV Rheinland® Flicker Free
- TÜV Rheinland® Low Blue Light
- UL Anti-dust
|
| Mil-Spec Test | MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog) |
| SOFTWARE |
| Operating System | Windows® 11 Pro, English |
| Bundled Software | None |
| ACCESSORIES |
| Bundled Accessories | None |
| MODEL INFORMATION |
| Model | 11VHS02R00 |
| Machine Type | 11VH |
| Region | ASEAN |
| Country/Region | Indonesia |
| TopSeller | No |
| EAN / UPC / JAN | 198153721351 |
| Announce Date | 2024-03-14 |
| End of Support | 2028-10-29 |
